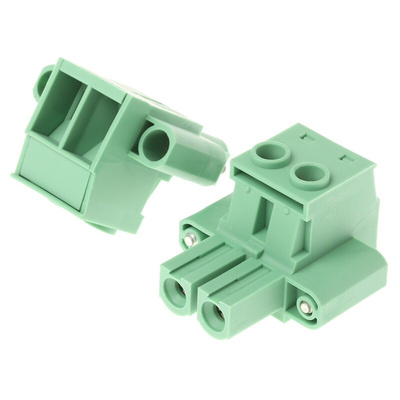

1967456, Phoenix Contact 10.16mm Pitch 2 Way Pluggable Terminal Block, Plug, Panel Mount, Screw Down Termination

4932737
Номер производителя: 1967456Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
1797.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact COMBICON PC 16 10.16mm Terminal Block Plug Connectors

COMBICON PC 16 series plug-in terminal block connectors with female sockets. The terminals feature a high current carrying capacity of 76 A and unrestricted 600 V UL approval. The COMBICON PC 16 series high capacity free hanging terminal block plugs can be plugged into PC 6-16 headers and IPC 16 plugs.

Features and Benefits

• Screw connection
• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force
• 10.16 mm pitch

Phoenix Contact PCB Terminal Block, 10.16mm Pitch, 2 Way - PC 16/ 2-STF-10.16 - 1967456

Use this female connector from Phoenix Contact to connect up to two conductors to your PCB (printed circuit board) for high-power applications. The green nylon housing has two sockets with integrated protective guides to prevent you from inserting a conductor incorrectly underneath the tension sleeve.
Wiring is made easy by steel springs that hold wires in place during tightening. These provide additional safety if there's an imbalance in temperature or power, while a screwable flange makes this component mechanically stable.
You can use this connector with conductors of 18 to 6 AWG (American Wire Gauge), so it's a versatile choice. It accepts PC 6-16 headers and IPC 16 plugs, so it's compatible with most industry-standard connectors. As the unit is designed to be panel-mounted, it reduces strain on your assembly and stabilises connections.

• Screw-down termination method with tin-plated copper contacts for effective and reliable connections
• Accepts stranded wire, solid wire, or cables with a ferrule, for versatile use
• Unrestricted 600V UL (Underwriters Laboratories) approval meets the requirements for UL V-0 certification, meaning it's flame-retardant and will stop burning within 10 seconds if there's a fire.

Phoenix Contact COMBICON 10.16mm Two Part Terminal Blocks

Техническая спецификация
pdfDatasheet
Кол-во контактов:
2
Количество рядов:
1
Концевая заделка:
Нажимной винт
Материал:
Нейлон
Номинал тока:
76A
Номинальное напряжение:
1 кВ
Ориентация корпуса:
Прямой
Серия:
POWER COMBICON PC
Тип монтажа:
Крепление на панель
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
10.16мм
