Schurter 6A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole 4304.4024, Solder 2 Fuse, Фильтр

Schurter Fuse Inlet Filter

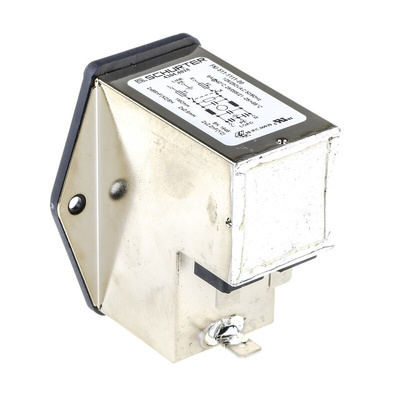

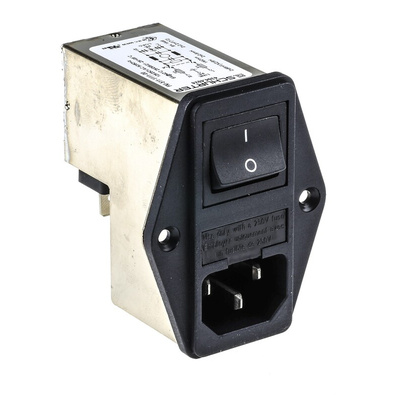

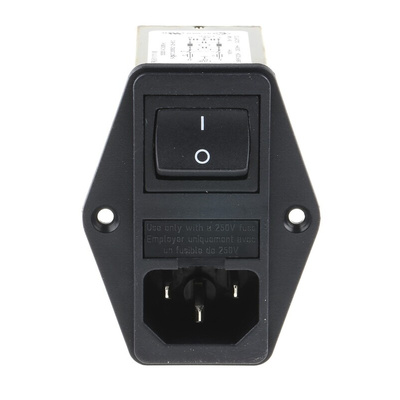

The Schurter FKI series inlet filter is a male, panel mount type C14 IEC connector with a dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 10A. It has a 2-pole Fuseholder for fuse-links of 5mm x 20mm and a 2-pole line switch. It acts as a line filter in the standard version and has class I inlet protection.

Features and Benefits

Nickel plated steel body
Quick connect terminals of 6.3mm x 0.8mm
All the single elements are already wired
Plug removal necessary for fuse-link replacement
Innovative EMC shielding
Operating temperature ranging between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
IEC 60950 / 60939 / 60601-1
EN 133200
