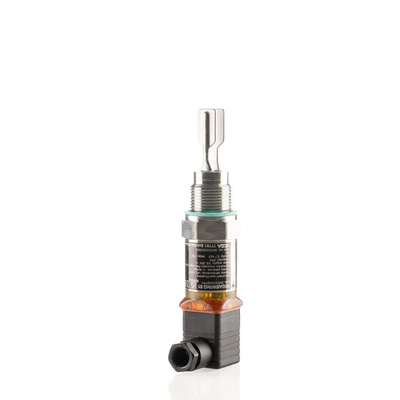

SG51.XXSGBTPV, Vega VEGASWING 51 Series Tuning Fork Level Switch, PNP Output, Horizontal, Stainless Steel Body

Vega Vibrating Level Switch

The Vega universal vibrating level switch for liquids has PNP transistor output. It detects the limit level reliably with millimetre accuracy. This can be used as an empty or full detector, as approved overfill protection, dry running protection or pump protection in vessels and pipelines. It is an affordable solution with maximum reliability and safety. Vibrating Liquid/Solid Level Probes - Squings.
All of these probes are maintenance-free and have an external LED switch status indication

Features and Benefits

Operating voltage ranging from 9.6VDC to 35VDC
Process fitting is thread from G, NPT, hygienic fittings

Precise and reliable function due to product-independent switching point
Minimum time and cost expenditure simple setup without a medium
Maintenance-free probes with external LED switch status indication
High-quality design and build quality
Self-monitoring
Unaffected by product density, conductivity or viscosity (up to 10 Paos)
High corrosion resistance 316 stainless steel housing and fork

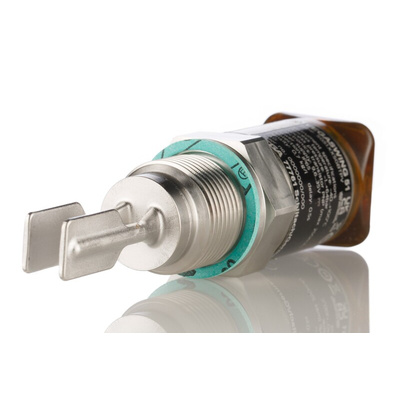

Ultra-compact 40mm fork and housing design
Process fitting: Thread from G, NPT, hygienic fittings
Power consumption is 0.5W maximum
Switching voltage is greater than 34VDC
Blocking current is greater than 10μA

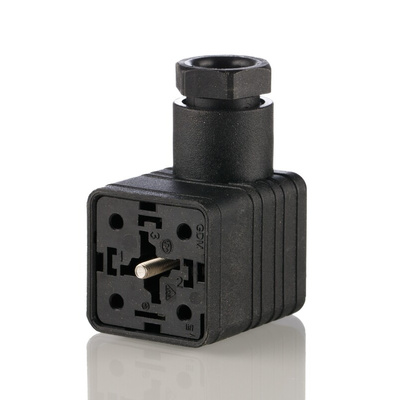

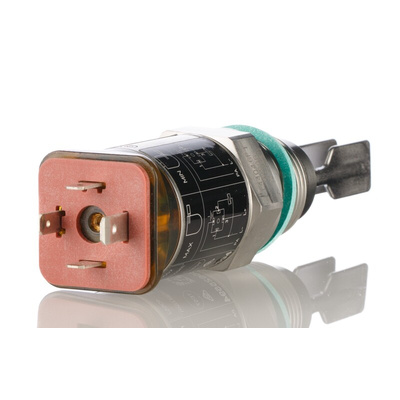

Electrical connection/Protection

Applications

Small level switch version with stainless steel housing
Point level detection for bilge and leakage monitoring
Oil tank point level detection in the rotor gearbox

Certifications

GL
LRS or ABS
IP20 rated

Vega 51 Data Sheet

Vega Swing 51 Operating Instructions
