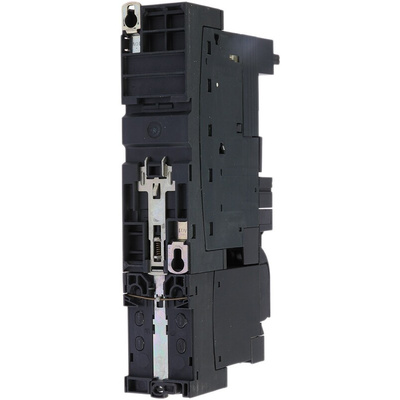

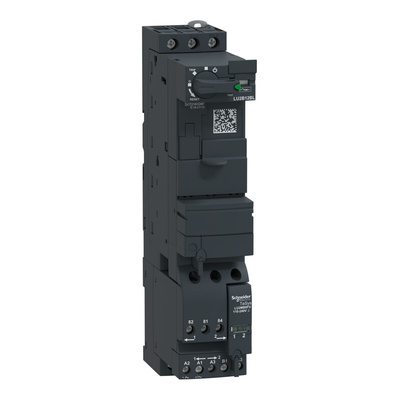

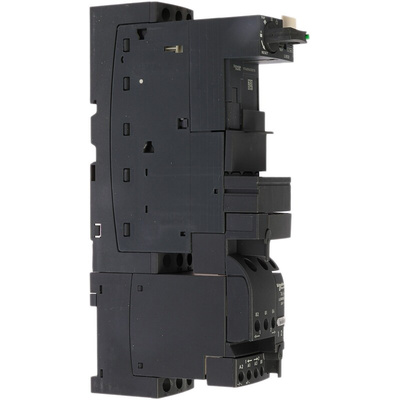

LU2B12BL, Schneider Electric Advanced Motor Starter, Reversing, 7.5 hp, 12 A

Schneider Electric TeSys Advanced Motor Starter, 7.5hp Power Rating, 12A Current Rating - U-Line Series - LU2B12BL

Control the stopping and starting of motors using this power base from Schneider Electric. It's an advanced motor starter that's suitable for 3-phase machines and, as it's capable of reverse functions, it can run a motor forwards or backwards. This makes it handy for controlling conveyors, pumps and fans. The unit comes with short circuit and overvoltage protection to safeguard equipment and reduce maintenance downtime. Use this power base to improve the efficiency and longevity of your industrial machines.

Features & Benefits

• Compact design with a width of 45mm means it slots onto a narrow gap on a crowded DIN rail
• Long mechanical lifespan of 15,000,000 cycles
• Rotary handle can be padlocked to prevent potential tampering

Applications

• Industrial automation
• Power distribution
• Electrical engineering

Does this advanced motor starter have any time-saving benefits?

Yes, this is a modular-style advanced motor starter so it's easy to expand and upgrade it to meet your needs. This saves you needing to completely remove and replace the unit to add functions to your system. It has minimal parts and wiring to reduce the installation and servicing time.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
