Schneider Electric Advanced Motor Starter

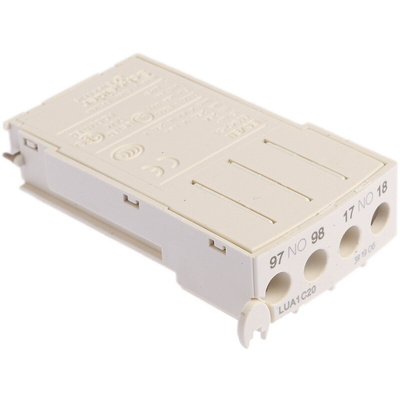

Schneider Electric TeSys Island Advanced Motor Starter, 250V AC/DC Voltage Rating, 5A Current Rating - U-Line Series - LUA1C20

Use this electric advanced motor starter from Schneider Electric to start or stop your motor control applications. The convenient modular system enables the creation of customised DOL starter solutions to align with your control requirements. You can perform your assembly and wiring tasks before selecting your motor protection parameters and control voltages, thanks to the handy plug-in modules. Protection against thermal overloads prevents damage and minimises costly downtime. A compact design with a width of only 45mm saves space on busy control panels.

Features & Benefits

• Broad-band electronic control unit provides improved overload protection while using fewer components
• Complete coordination helps with fast returns to service after short circuits
• Screw clamp terminals keep contacts and conductors firmly connected for reliable signal transmission

Applications

• Packaging and assembly conveyor belts
• Industrial fans
• Compressors
• Water pumps

How do I choose a DOL starter?

When choosing a DOL advanced motor starter, you should check how many phases your motor has and if it's rated in hp or kW. It's also important to know the input supply voltage and match it with your application accordingly.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
