LUB12, Schneider Electric 7.5 hp Advanced Motor Starter, 12 A

Schneider Electric Power Base - U-Line Series

Schneider Electric power bases are one of two basic units that are required every when used in conjunction with a control unit. This type of power base is independent of the control voltage motor power, it also incorporates the braking function.

Features & Benefits

• Each power base within this range is independent of the control voltage and of the motor power


• Incorporates the braking function with a breaking capacity of 50 kA at 400 V


• Total co-ordination (continuity of service) and switching function


• Offers users short circuit protection, dramatically impacting downtime of machines


• Padlockable


• Disconnection/isolation


• Two auxiliary contacts (1NO+1NC) which indicate the open or closed position of the power contacts


• Each powerbase is 45mm wide


• Forms part of Schneider Electrics TeSys range of products

Note

Current shown is when at a voltage of 440V is utilised. LUB**** series power bases are non-reversing, LU2B**** series are reversing types.

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

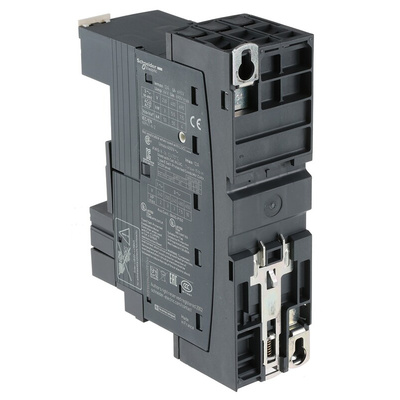

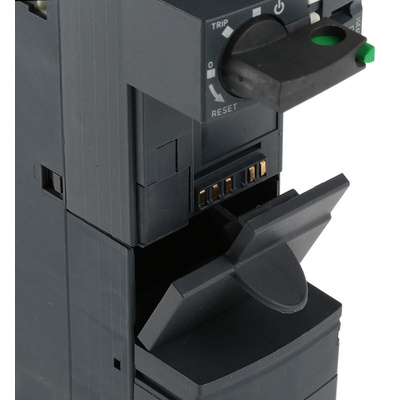

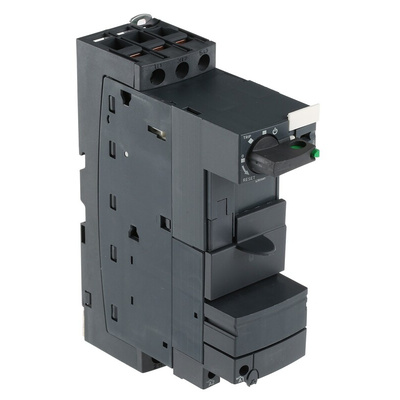

Schneider Electric LUB12 Power Base

• This power base is non-reversing


• This base is 3 pole


• Suitable for isolation


• 12 A conventional free air thermal current


• 40...60 Hz network frequency


• The LUB12 base is a source of power

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
