LUCB32B, Schneider Electric Advanced Motor Starter, Manual, 15 kW, 24 V ac, 3 Phase, IP20, IP40, 8 → 32 A

Advanced Control Units, 3 phase, Class 10

Required by every Power Base module, plugs into base
Select the control voltage, motor power and class
Provides motor protection against overloads, short circuits, phase failure and phase imbalance
Test button

Note

For use with, refers to a power base with the relevant capacity.

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

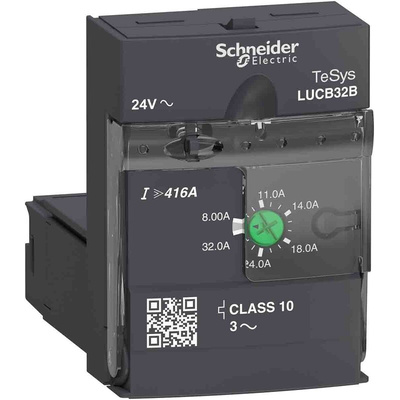

Schneider Electric Advanced Motor Starter, Plug-In Mounting, 8 to 32A Thermal Protection Range - U-Line Series - LUCB32B

Build a starter system for your three-phase motor with the help of this advanced control unit from Schneider Electric. It includes thermal protection and an overload alarm, so you can protect equipment and diagnose faults. The unit also offers phase failure and imbalance safeguards to prevent motor damage. An adjustable current setting range between 8 and 32A means you can set your protection level to match your motor rating. As it plugs straight into LUB power bases, it's easy to boost your controls.

Features & Benefits

• Operating time between 35 and 70ms means it's a fast worker
• With dimensions of 66 (L) x 45 (W) x 60mm (D), it's a compact option
• Free from PVC and mercury to boost safety and sustainability

Applications

• Marine and offshore
• Manufacturing facilities
• Water treatment works
• Pharmaceutical production

Can I use this motor starter with squirrel-cage motors?

This starter's designed for use with AC-43 and AC-44 motors, so it can be used to operate squirrel-cage motors.

Can I use this starter in hot and humid conditions?

Yes. A TH treatment is applied to the unit, meaning it's well-suited to hot and humid environments and able to work at temperatures between -25°C and +70°C.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
