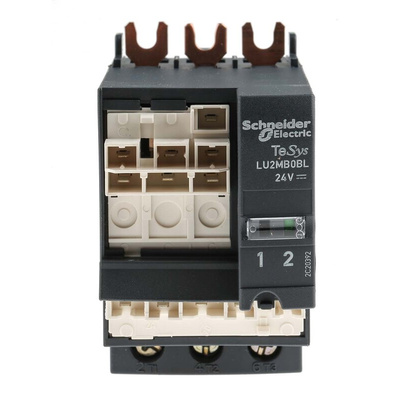

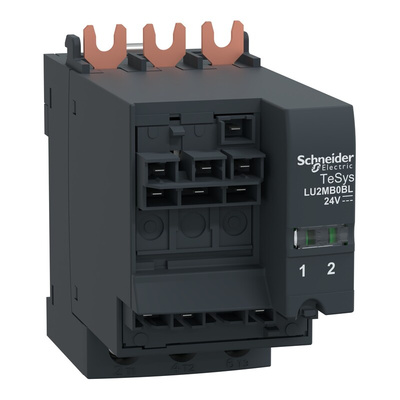

LU2MB0BL, Schneider Electric Contactor Reversing Block for use with TeSys U Series

Reversing Blocks

Allows non-reversing Power Bases to be converted to reversing operation.

Mounts directly below a Power Base without any modifications\t\t
LU2M type do not have screw connections

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

Schneider Electric Contactor Reversing Block, 24V DC Control Circuit Voltage, 38A Current Rating - TeSys U Series - LU2MB0BL

Slide your equipment into reverse gear with this contactor reversing block from Schneider Electric. It works with a motor starter to change the rotation direction of your motor, giving you enhanced control over your system. Thanks to its built-in mechanical interlock, the device prevents a motor from driving in both directions at once to cut down on the risk of burnout. As it simply plugs into a motor starter, you can install it in no time. A current rating of 38A means this block can power through motor reversal in high-current systems.

Features & Benefits

• Low current consumption of 120mA for energy efficiency
• Quick operating time between 75 and 150ms for rapid-fire switching
• Screw clamp terminals to secure wiring against vibrations
• Compact measurements of 80 (H) x 45 (W) x 105mm (D) for installation in tight spaces

Applications

• Material handling
• Packing plants
• Construction sites

Can I use this product in extreme temperatures?

Yes, this reversing block has a wide operating temperature range between -25°C and +60°C, so it's a safe bet for harsh industrial conditions.
