PT5S7LC4 1415076-1, TE Connectivity DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, 4PDT, Реле

TE Connectivity Non-latching Relay

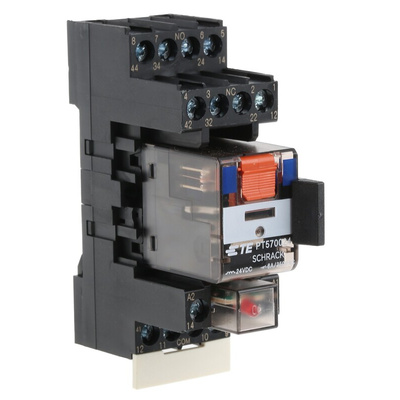

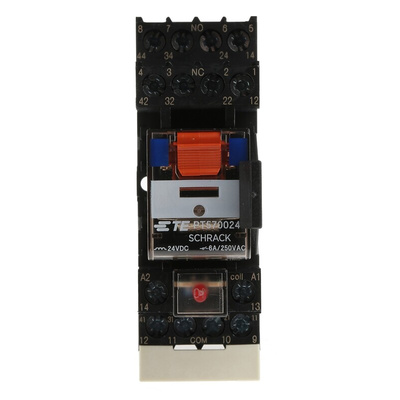

The TE Connectivity PT series DIN rail mount non-latching relay has contact configuration of 4PDT. It is actuated with 24VDC coil voltage and 6A switching current. This relay has a mechanical and electrical indicator and manual test tab. This package consists of the relay, DIN rail socket, module, retainer and marking tab.

Features and Benefits

Coil resistance is 777ohm
Coil power is 750mW
Screw terminal type
LED and protection diode module
DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier looping

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC 61810-1
VDE approved

PT-Relays Package
