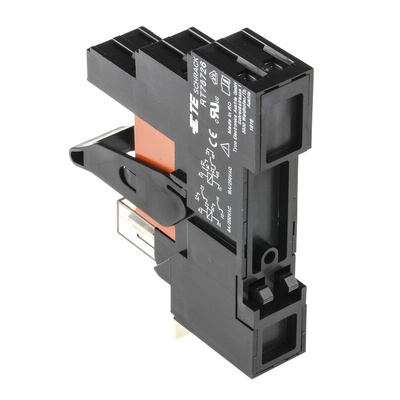

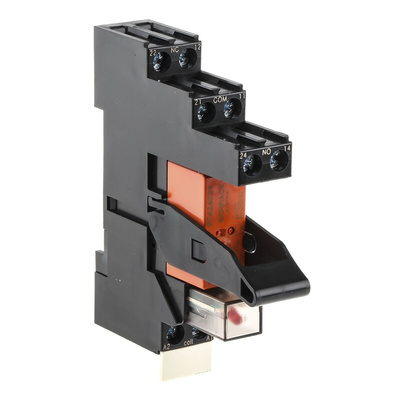

RT4S4LC4 1-1415073-1, TE Connectivity RT Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole

TE Connectivity Interface Relay Module

The TE Connectivity interface relay module is a compact electromechanical device equipped with a 24VDC operated coil and 2CO DPDT switching contact configuration. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. It has many approvals and hence, it can be used for various applications around the world. This relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

Relay output current rating is 8A and a voltage rating of 250VAC
AgNi contact along with optionally hard gold-plating available
Operating temperature ranges between -20°C and 85°C
Fully assembled relay interface modules
Reinforced insulation protection class II
DIN rail or chassis mount
Screw type terminal
Isolation coil to contact 5000V

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
IEC 61810-1
IEC 60664-1
IEC 61984
VDE approved
UL/CUL listed
BEAB approved
SEMKO approved

Approvals

VDE; UL (Canada & US); BEAB; SEMKO;

RT-Relays Package
