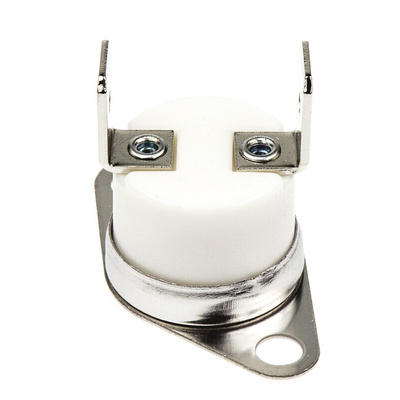

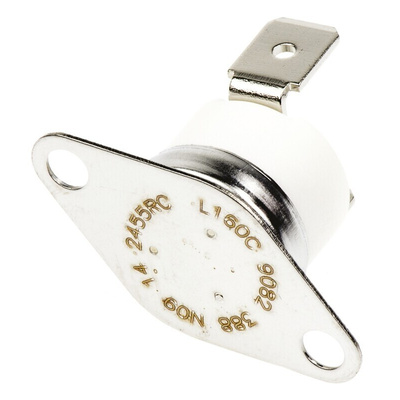

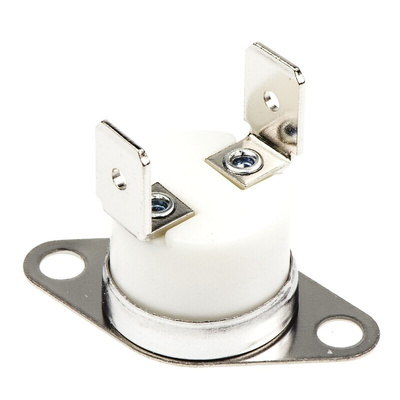

2455RC-90820388, Honeywell Bi-Metallic Thermostat, Opens at +160°C, Closes at +135°C, +260°C Max, SPST NC, Automatic Reset, Термостат

High Temperature Bi-Metallic Thermostat

Designed specifically for harsh, high temperature environments
Snap action bi-metallic disc, which is electrically and thermally isolated from the switch, actuates the normally closed contacts
Ceramic housing with heat sensitive disc retained by a heat conducting stainless steel end cap
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac.

Approvals

UL recognised component, CSA Certified

Honeywell Thermostatic Switch, +160°C Opening Temperature, +135°C Closing Temperature - 2455RC Series - 2455RC-90820388

This thermostatic switch from Honeywell regulates liquid or air in a temperature control system by switching the system off or on to help maintain a set temperature. Its bimetallic construction consists of nickel and steel strips that bridge together to complete an electrical circuit. The nickel metal heats up and bends to cause a physical break in the circuit when its opening temperature of +160°C is reached. When the control system cools to +135°C, the nickel assumes its original shape and the circuit is reconnected.

Features & Benefits

• Ceramic housing material is heat-resistant to maintain switch durability
• Wide operating temperature range of 0°C to +260°C for use in demanding environments
• Contact rating of 15A at 250V AC (alternating current) for use in medium-power applications

Applications

• Air conditioning units
• Heating systems
• Circulation pumps
• Automotive engineering

How quickly does this thermostatic switch open and close?

This thermostatic switch opens and closes slowly and gradually as the nickel strip takes time to expand and contract. This helps ensure that heating systems are not needlessly switched on or off.
