V60A413A-A2000, Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 60 Series, Клапан

V60-63 Series Solenoid Valve

The Norgren series of solenoid valves offer high flow rates at a small size, requiring minimal installation space, with a manifold system for easy assembly. The solenoid valves are maintenance free, with a proven sealing system, and low power consumption.

Features and Benefits

• The V60-63 series of solenoid valves benefit from a long life, maintenance free with extensive switching cycles
• The range features application based pilot valves available in a variety of functions and sizes
• Suitable for operation with a number of mediums; standard compressed air, filtered lubricated and non-lubricated applications
• Operating pressure ranges of -0.9 to 10 bar (-13 to 145 psi)
• Common external air supply and pilot air exhaust possible

Note

Pilot valves are sometimes referred to as pressure actuated valves. Solenoid coil operators and connector plugs must be ordered.

Warning

Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

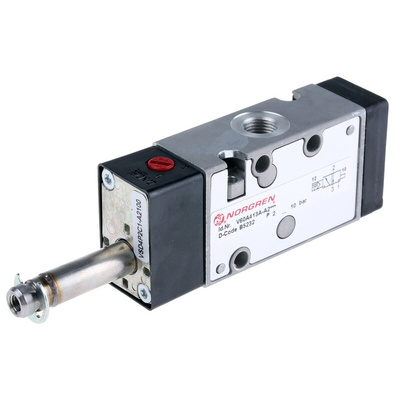

IMI Norgren Pneumatic Solenoid Valve, Aluminium Body Material, 750L/min Maximum Flow Rate - 60 Series - V60A413A-A2000

Pilot your pneumatic devices to new heights of efficiency with this 3/2 solenoid valve from IMI Norgren. Because it's actuated by air pressure in the system, it consumes less power than direct-acting alternatives, making it an energy-efficient choice. Compact dimensions of just 116.5 (L) x 35 (W) x 22mm (D) mean it's suitable for the smallest spaces, but don't let its diminutive size fool you – this mighty mini can handle high flow rates of up to 750L/min. With an operating range of 2 to 10 bar, it won't fold under pressure either.

• Light 220g weight puts minimal strain on your equipment
• Standardised G1/8 port size for widespread compatibility
• Manifold system makes installation a breeze

Applications

• Packaging machinery
• Manufacturing industry
• Transportation equipment

What's this valve made from?

The body is constructed from a die-cast aluminium alloy, providing strength without adding unnecessary weight, while the plastic components are made of impact-resistant PBT thermoplastic. Thermally stable NBR seals mean the valve tolerates an operating temperature range between -10°C and +50°C for compatibility with heavy-industrial settings.

Datasheet

V60 … V63 Series Valves Datasheet
