RBM-1212D, Recom RBM DC-DC Converter, ±12V dc/ ±41mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

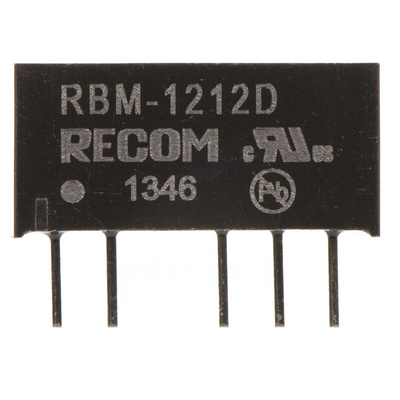

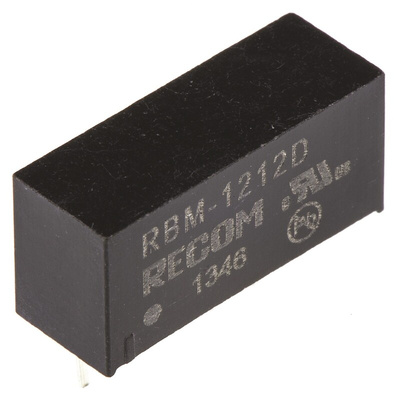

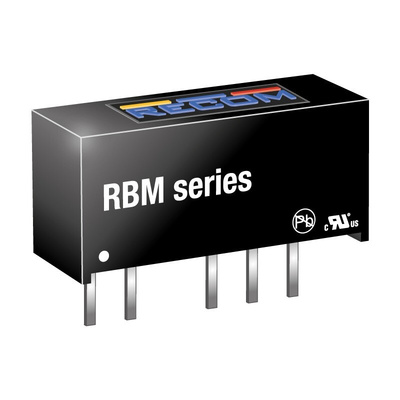

RECOM DC-DC Converter, SIP Package, 3kV DC Isolation - RBM Series - RBM-1212D

When circuits don't play nicely together on your board, use this DC-DC converter from RECOM to isolate them. Its basic grade of isolation with a 3kV DC voltage keeps circuits electrically separated to avoid component damage and the risk of electric shocks. A SIP6 Micro package and dimensions of 16.55 (L) x 6 (W) x 7.7mm (H) ensure the device has a small footprint. Combined with through-hole mounting in a standard pinout, this makes it a doddle to slot onto a PCB. The dual output generates a positive and a negative voltage, making the unit suitable for distributed power systems and bipolar supply rail applications.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in demanding environments
• Short-circuit protection prevents excessive currents from causing damage to connected equipment
• Low ripple and noise of 100mVp-p to keep the outputs smooth and steady

Applications

• Machine automation
• Process control
• Industrial communication networks
• Sensors and actuators

Is this DC-DC converter efficient?

Yes. A power rating of 1W and a maximum efficiency of 82% means this hard-working DC-DC converter gets on with its job without producing waste heat.
