ROM-0505S, Recom ROM DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

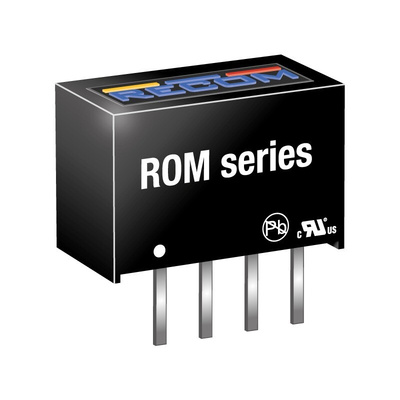

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - ROM Series

Micro size SIP4 package
3kVdc isolation
UL 94V-0 package material
Industry standard pinout
Efficiency at full load up to 80%

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-1

RECOM DC-DC Converter, ±15 % Load Regulation, 1000μF Maximum Capacitative Load - ROM Series - ROM-0505S

This DC-DC converter from RECOM proves that big things come in small packages. Mount it on a PCB in systems where space is at a premium. Thanks to dimensions of 6.05 (W) x 11.5 (L) x 7.7mm (H), it's a breeze to fit into devices like phones or sensitive medical equipment. As the input and output voltages are the same, you can use this unit to isolate your circuit board from the power source to protect it from short-circuiting. Rest assured, with a 78% efficiency rating, most of that electricity gets converted and not much is wasted as heat.

• Wide operating temperature range of -40°C to +85°C for use in demanding applications
• Light 1g weight won't put unnecessary strain on a PCB
• Short-circuit protection safeguards attached devices from overload

Applications

• Medical equipment
• Automotive industry
• Telecommunications networks
• Aerospace engineering

How long will this DC-DC converter last?

This small but mighty component has a mean time between failures of over 189,000 hours, even at maximum temperatures. This means the unit can outlast the tech that it's installed in, giving you peace of mind.
