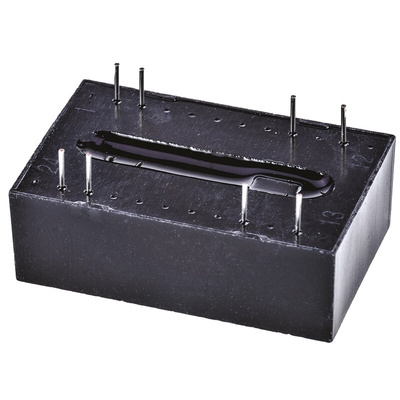

REC3-2415DRWZ/H6/A, Recom REC3 DC-DC Converter, ±15V dc/ ±100mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp -40°C, Преобразователь

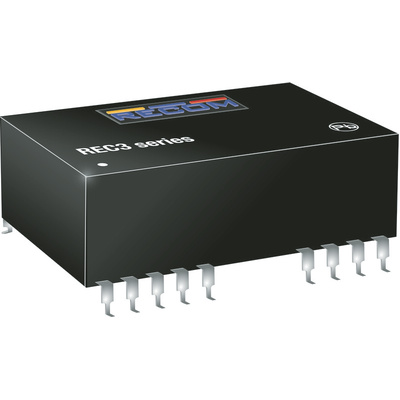

Recom 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC3 Series

2kVDC (H2 suffix) 4kVdc (H4 suffix) or 6kVdc (H6 suffix) Isolation
Regulated outputs
2:1 or 4:1 (Z suffix) wide range input
Efficiency up to 85%
UL94V-0 package material
Short circuit protection, auto restarting
DIP24 miniature package

Note

Operating temperature is without derating.

Standards

EN60950-1, UL60950-1, EN60601-1

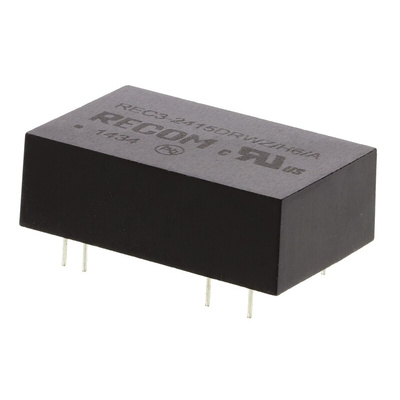

RECOM DC-DC Converter, 6kV DC Isolation Voltage, DIP Package - REC3 Series - REC3-2415DRWZ/H6/A

Want to add power but not bulk to your printed circuit board? Choose this DC-DC converter from RECOM. It's a small but heavy hitter with a 4:1 input range, so it accepts between 9 and 36V DC. This mini powerhouse transforms that input to a reliable ±15V DC output, making it ideal for powering sensitive industrial and medical devices. Short-circuit damage is taken out of the picture thanks to the unit's continuous SCP that automatically restarts to ensure non-stop protection.

• Wide operating temperature range between -40°C and +85°C for use in demanding conditions
• Through-hole mounting for quick and simple installation
• Mean time between failures of 186,000 hours, so you can be assured of a long service life
• Non-conductive plastic casing prevents noise from interfering with your circuits

Applications

• Industrial electronics
• Medical industry
• Telecommunications systems

How big is this converter?

This converter's dimensions are just 20.3 (W) x 32 (L) x 10.2mm (D), meaning it fits neatly onto a busy PCB.

How efficient is this device?

It has an efficiency rating of 83% to 85%, so it keeps power wastage to a minimum.
