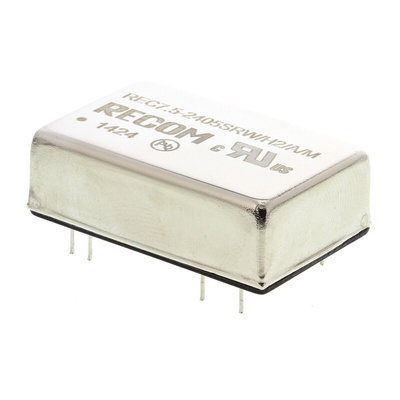

REC7.5-2405SRW/H2/A/M, Recom REC7.5 DC-DC Converter, 5V dc/ 1.5A Output, 18 → 36 V dc Input, 7.5W, Through Hole, +71°C Max Temp -40°C, Преобразователь

Recom 7.5W Single/Dual Output Regulated Isolated DC-DC Converter - REC7.5 Series

2kVdc isolation
2:1 Input range
Efficiency up to 86%
5 side shielded metal case with insulated baseplate
Continuous short circuit protection, auto restarting

Note

Operating temperature is without derating.

RECOM DC-DC Converter, 2kV DC Isolation Voltage, 1 Output - REC7.5 Series - REC7.5-2405SRW/H2/A/M

When you need to step down voltage, put this DC-DC converter from RECOM in charge. It provides a regulated output of 5V DC, so keeps low-voltage equipment operating without a hitch. An isolation voltage of 2kV DC ensures the unit's input and output are safely separated. This makes it a practical choice for supplying power to medical devices, as there's minimal risk of electric shocks. The isolation feature also cuts down the chance of power faults passing from one circuit to another. You get lots in a small package, as the converter packs a punchy power rating of 7.5W into dimensions of 32 (L) x 10.5mm (D).

Features & Benefits

• Efficiency between 79% and 82%, so minimal power is lost during the switching process
• Continuous short-circuit protection reduces the chance of electrical damage to equipment
• Wide operating temperature range between -40°C and +71°C for use in challenging locations

Applications

• Dentistry
• Hospitals and medical centres
• Laboratories
• Industrial power supplies

What type of housing does this converter have?

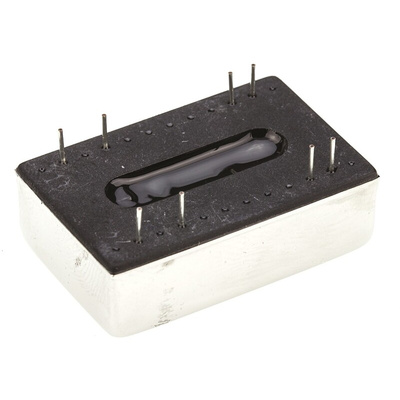

The converter has a nickel-plated metal housing that resists abrasion and wear, which extends its service life. For safety, its base is non-conductive.
