REC7.5-2415DRW/H2/A/M, Recom REC7.5 DC-DC Converter, ±15V dc/ ±250mA Output, 18 → 36 V dc Input, 7.5W, Through Hole, +71°C Max Temp, Преобразователь

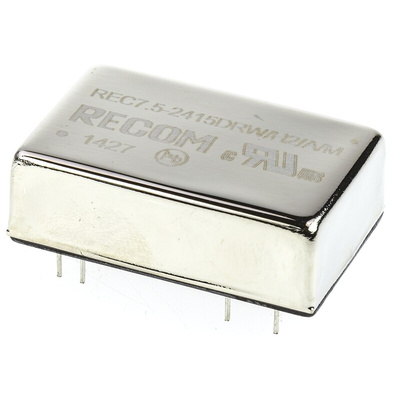

RECOM DC-DC Converter, DIP Package, 2kV DC Isolation Voltage - REC7.5 Series - REC7.5-2415DRW/H2/A/M

Looking for a power supply you can depend on? Get the job done with this DC-DC converter from RECOM. It converts inputs between 18 and 36V DC into a steady ±15 V DC output voltage. As it can also briefly deliver up to 140% of the rated power, it's ideal for systems needing a high start-up current. Thanks to the unit's continuous short-circuit protection with automatic restart, you can rest assured that your equipment will be safe in the event of an electrical fault.

• Wide operating temperature range between -40°C and +71°C for use in demanding conditions
• Through-hole mounting makes for quick and easy installation
• High efficiency of up to 86% means it's an energy-conscious choice
• Long mean time between failures of 200,000 hours, so you can be confident of a long service life

Applications

• Medical facilities
• Energy sector
• Aerospace equipment

What's the difference between DIP and SMT?

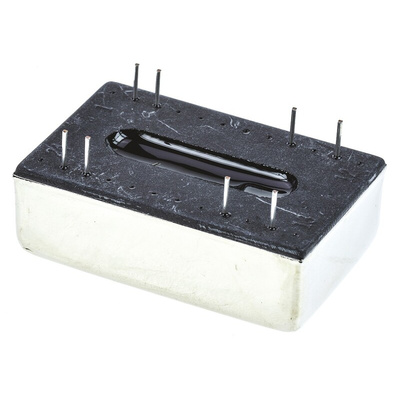

DIP devices like this one are easier to install because they feature pins that insert directly into a PCB, whereas SMT components must be soldered onto the surface.

Datasheet
