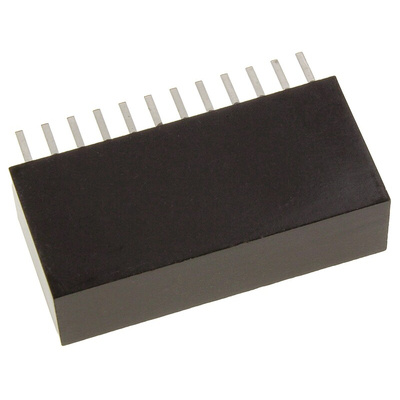

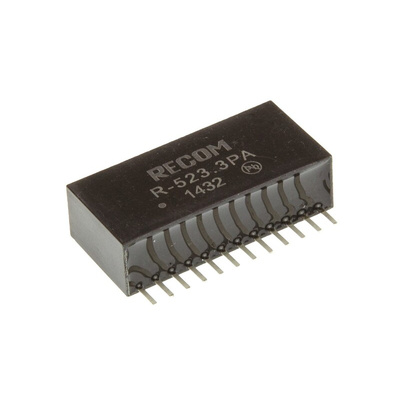

R-523.3PA, Recom R-5 DC-DC Converter, 3.3V dc/ 2A Output, 4.5 → 18 V dc Input, 6W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

R-6xxxP & R-5xxxP Series

Adjustable positive step down integrated switching regulator
Adjustable output voltage
Overload protection
Wide input range
R-5xxxPA series has auto-sense function
Continuous short circuit protection
Remote on/off control
Efficiency up to 96%
SIP12 package

RECOM DC-DC Converter, 92% Maximum Efficiency, Plastic Housing - R-5 Series - R-523.3PA

Worried about reliable power control for your PCB-linked components? Let this DC-DC converter from RECOM take the weight off your shoulders. It steps down input voltage signals between 4.5 and 18V to an output range of 1.6 to 5.5V that devices such as sensors can use. Thanks to its auto-sense feature, this smart piece of kit can make up for energy losses in long circuit loops, ensuring your parts get exactly what they need to work. As it's up to 96% efficient, it produces next to no waste energy as heat, meaning there's no call for a heatsink.

Features & Benefits

• Vertical through-hole mounting offers a permanent link to the PCB that's useful in vibrating settings
• Non-conductive plastic housing can withstand impact, making it a practical choice in harsh environments
• Broad operating temperature range between -40°C and +85°C for use in extreme conditions
• Continuous short-circuit protection for enhanced safety

Applications

• Medical equipment
• Gaming consoles
• Robotics and automation systems

What's the mean time between failures of this DC-DC converter?

At an operating temperature above +25°C, this unit has an MTBF of 749,000 hours, so you can rely on it for long-term service.
