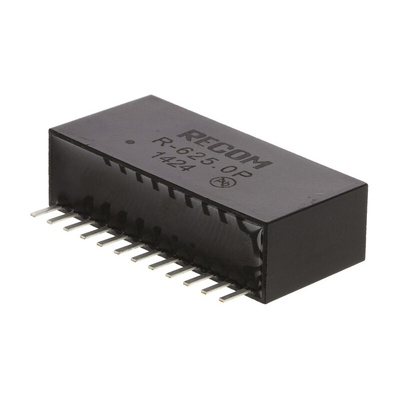

R-625.0P, Recom R-6 DC-DC Converter, 5V dc/ 2A Output, 9 → 32 V dc Input, 18W, Through Hole, +85°C Max Temp -40°C Min Temp, Преобразователь

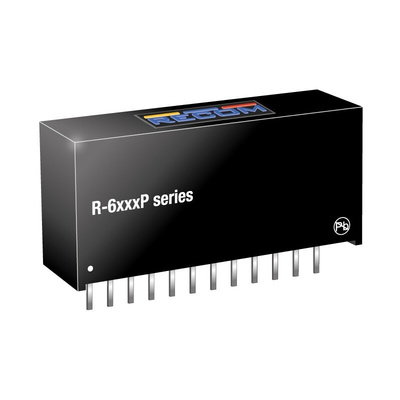

R-6xxxP & R-5xxxP Series

Adjustable positive step down integrated switching regulator
Adjustable output voltage
Overload protection
Wide input range
R-5xxxPA series has auto-sense function
Continuous short circuit protection
Remote on/off control
Efficiency up to 96%
SIP12 package

RECOM DC-DC Converter, 1.8 to 9V DC Output, 90% Maximum Efficiency - R-6 Series - R-625.0P

Adjust your power supply to suit your devices with this DC-DC converter from RECOM. As its output voltage ranges between 1.8 and 9V DC, it gives you precise control over your electrical source for wide compatibility. Thanks to a maximum efficiency rating of 90%, you can be sure the unit minimises power loss. A line regulation rating of ±0.5% means you get a stable output voltage for reliability. Thanks to integrated short-circuit protection, this converter stops electrical faults from damaging your hardware.

Features & Benefits

• Wide input voltage range between 9 and 32V DC for compatibility with standard power sources
• Compact dimensions of 32.2 (L) x 9.1 (W) x 15mm (D) for installation on busy PCBs
• Maximum ripple voltage of 120mV for minimal disruption from electrical noise
• Broad operating temperature range from -40°C to +85°C for use in harsh industrial environments

Applications

• Portable computers
• Power generators
• Measuring equipment
• Automotive industry

How do I mount this DC-DC converter on my PCB?

This converter uses vertical through-hole mounting to make a quick attachment to your circuit board.

Datasheet
