S8VS03024, Omron S8VS Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 1.3A Output, 30W, Блок питания

S8VS Series Switch Mode DIN Rail Power Supply 10W to 30W

Omron S8VS is a general purpose power supply that is a DIN Rail mounted, switch mode power supply. The S8VS power supply provides you with notification of replacement timing plus a buffer block manages momentary power interruption. The power supply unit includes an indication monitor with the status displayed on 2-digit, 7 segment display. Compliant to UL, CSA and CE approvals.

Features and Benefits.

•Power supply
•General purpose
•DIN Rail mounting
•Switch mode
•Display monitor indication
•Low voltage indicator
•2-digit, 7 segment display
•Case covered, compact industrial standard housing
•Screw terminal
•Under voltage alarm
•Harmonic current emissions
•Natural air cooling
•Terminal block structure

Power ratings available.

15 W to 30 W.

Output Voltages available.

5 V to 24 V.

What is A Switch Mode Power Supply?

What is A Switch Mode Power Supply?
Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

What is a DIN Rail Mounted Power Supply?

A DIN rail is a standard type of rail that is used to mount the power supplies into racks. DIN rails are a support for equipment. Din Rails are normally made from aluminium but if there is a chance that the power supply will suffer any shock or vibration, use a steel DIN Rail.

Safety and Storage.

Do not use the power supply in areas where subject to shock and vibration. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Store the power supply at -25°C to 65°C.
Humidity of 25% to 90%.
No derating up to 60°C.
Keep away from direct sunlight.

Standards

UL508 (listing, Class 2 output: per 1310), UL60950-1, UL63268-1, CSA C22.2 No 107.1 (cUL) (Class2 output: per CSA C22.2 No 223), CSA C22.2 No.60950-1 (cUR), EN50178, EN6095001, EN62368-1, EAV Mark, RCM Mark.

Approvals

UL Class 2 output Standards (UL 1310) UL, CSA, CE.

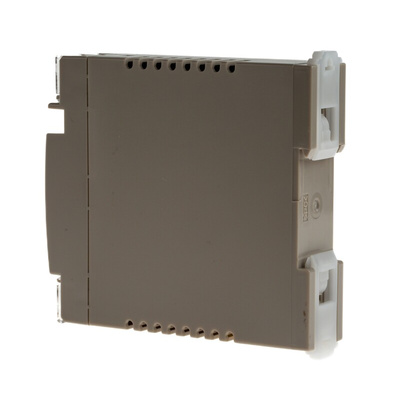

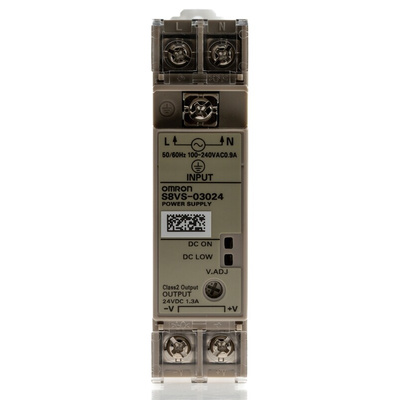

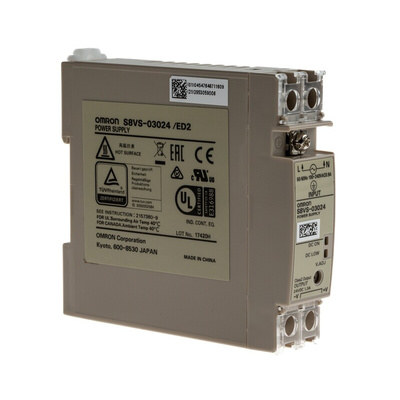

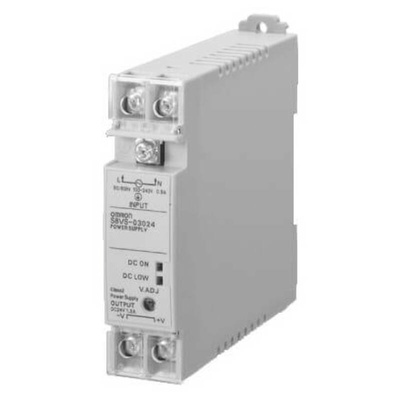

Omron S8VS DIN Rail Power Supply, 24 V dc, 1.3A - S8VS03024

This is a compact and reliable switch mode power supply designed for industrial applications. With a power rating of 30 W, it operates on a wide input voltage range of 100 to 240 VAC. The output voltage is 24 VDC, making it suitable for various devices. Equipped with terminal blocks (screw terminals), an undervoltage alarm indicator, and harmonic current emissions control, this power supply ensures stable and efficient performance.

Features & Benefits

• UL Class 2 ensures safety and compliance
• Screw terminal facilitates secure and efficient connections
• Undervoltage alarm indicator alerts users in case of voltage drops
• Harmonic current emissions minimises interference with other equipment
• Efficiency of up to 85% efficiency at 100VAC input and 86% at 200VAC input
• Overload protection automatically resets to prevent damage
• Overvoltage protection safeguards connected devices

Applications

• Industrial automation systems
• Control panels
• Machine tools
• Robotics
• Factory automation

Can I use the inverter output for this power supply?

No, it is not recommended to use the inverter output with the S8VS03024.

What is the life expectancy of this power supply?

The S8VS03024 has a life expectancy of 10 years under standard conditions.

Is parallel operation possible with this model?

No, parallel operation is not supported. However, backup operation is feasible with external diodes.

Standards

UL, CSA, EN, VDE

UL E104818

UL LISTED FOR CANADA E104818-7
