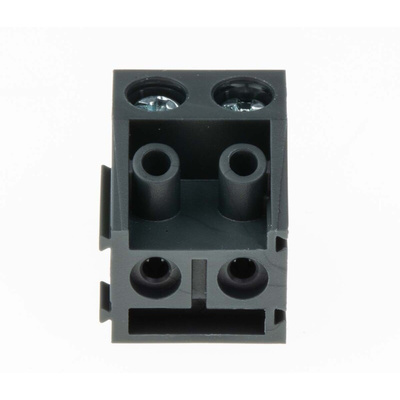

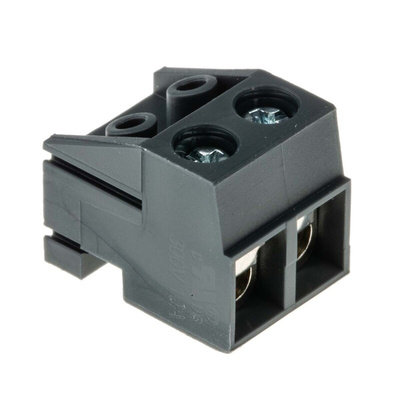

RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 5 mm Pitch, 2-way PCB Terminal Strip

This 4-way PCB (printed circuit board) terminal strip is used in conjunction with PCB header strips. It allows you to link up wires across different PCBs quickly and easily.

The PCB terminal strip uses a screw-cage clamp termination method that allows for reliable connections with a variety of differently sized devices. The connections can be secured by the simple tightening of a screw. Through-hole mounting also contributes to the ease of use. It's a modular device that can be directly mounted and stacked on the PCB board. This makes the PCB terminal strip highly versatile and suitable for a broad range of applications, as does its operating temperature range of -40°C to +105°C.

The housing of this PCB terminal strip is made from a grey polyamide material (PA66), which is certified UL94 V-0, indicating a good level of flame resistance. You'd find it used in anything from everyday electronics devices to industrial equipment.

Features and Benefits

• 2 contacts
• Pitch of 5 mm
• Single row
• Pluggable
• Through hole mounting
• Female
• Screw termination method
• Straight body orientation
• Made of PBT polyamide (grey)
• Voltage Rating of 300 V
• Current Rating of 10 A
• Dimensions of 10.8 mm (width) x 10.7 mm (length) 13.5 mm (depth)
• Operating temperature range of -40°C to +105°C
