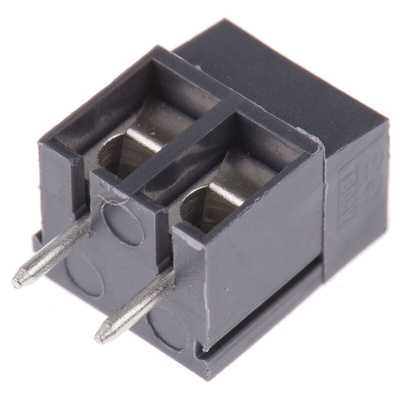

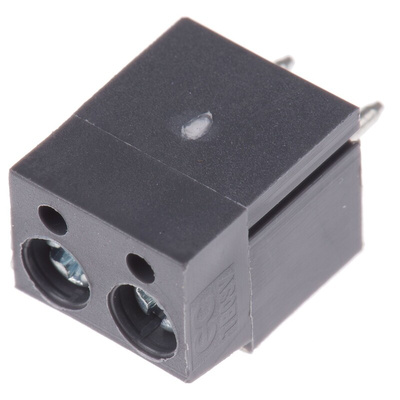

RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2-pin PCB Terminal Strip, 5 mm Pitch

To secure two or more wires together, choose this PCB (printed circuit board) terminal strip from RS PRO. This unit is typically used to connect wires to the ground so that signals are able to travel cleanly and without any noise.
This PCB strip features tin-plated bronze clamps that are highly reliable and offer superior resistance to rust and corrosion. The clamps are housed in a glass-filled PBT (polybutylene terephthalate) body to ensure a robust and durable construction. Screw-type terminals make it quick and simple to connect wires without the need for any special tools.
The unit is a popular choice in telecommunication systems, industrial electronics equipment and servers. It's part of the trusted RS PRO range and undergoes testing for quality and reliability. Plus, it's RoHS (Restriction of Hazardous Substances) compliant, so it contains only trace amounts of any harmful contaminants.

Features and Benefits

• Straight body orientation
• Current rating of 16 A
• Dimensions of 9 (depth) x 25.4 (length) x 12.5 (width) mm
• Male gender
• Polybutylene terephthalate (PBT) material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V

Approvals

UL (101811); VDE (0110); ICEL; BSI (076680-101219)

RS PRO Datasheet
