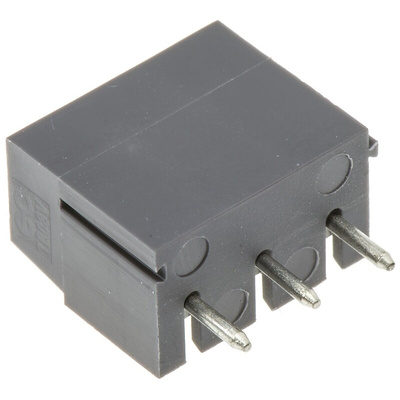

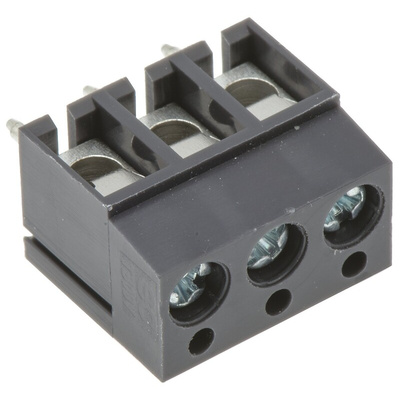

RS PRO PCB Terminal Block, 3-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 3-pin PCB Terminal Strip, 5 mm Pitch

Choose this RS PRO PCB (printed circuit board) terminal strip to connect two or more wires. This component is often used to link cables to the ground, allowing signals to travel cleanly and without noise. It's commonly used in communications networks, industrial electronics and servers.


This terminal strip has tin-plated bronze clamps for corrosion and rust resistance, making it highly reliable. To ensure a sturdy and long-lasting construction, the clamps are encased in a glass-filled PBT (polybutylene terephthalate) body. For ease of use, screw-type terminals allow you to connect wires quickly and easily without the need for specialised tools.


As part of the RS PRO range, this product has been tested for quality and dependability. It's also RoHS (Restriction of Hazardous Substances) compliant, which means it contains only trace amounts of any harmful materials.

Features and Benefits

• Straight body orientation


• Current rating of 16 A


• Dimensions of 15 (length) x 9 (width) x 12.5 mm (depth)


• Male gender


• Polybutylene terephthalate (PBT) material


• Through-hole mounting type


• Three contacts


• One row


• Pitch of 5 mm


• Screw termination method


• PCB terminal block type


• Voltage rating of 300 V

Approvals

UL (101811); VDE (0110); ICEL; BSI (076680-101219)

RS Pro Datasheet
