LVDT Solartron Metrology 911315-RS, Дифференциальный трансформатор

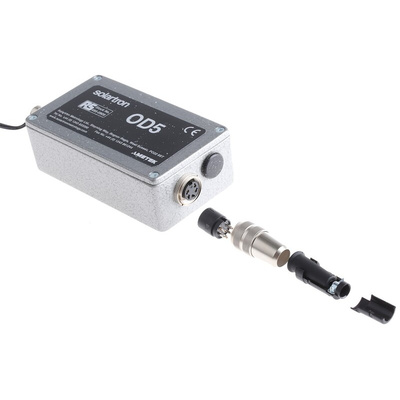

OD5 Conditioning Module

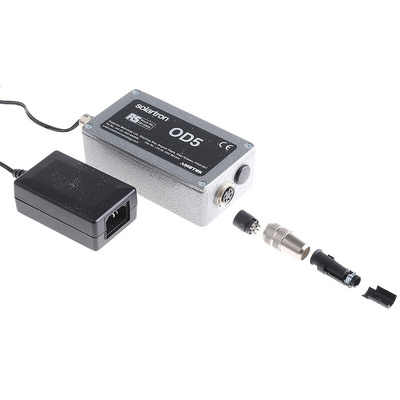

External PSU used, allows OD5 case to be smaller and isolates the mains voltage to make it safer
120Va.c. or 240Va.c. operation and suitable for use with all a.c. LVDTs and most others
Wide range span and zero control with both -10 to 10V and -20 to 20mA outputs
Gain and offset adjustment fully independent
Selectable transducer excitation frequency and load resistances
Forward and reverse connection selection, saves swapping wires in the connector

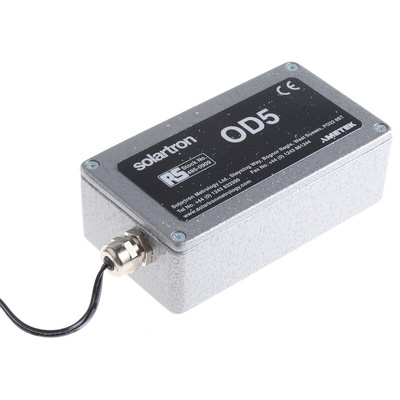

Housed in a robust die cast aluminium box with a 5-pin DIN connector
Half-bridge transducers accommodated with a simple plug wiring change

Supplied with

Instructions and 5-pin DIN plug.

Linear Variable Differential Transformers (LVDT)

These devices comprise a movable nickel iron core and three coils - one for energisation and two for pick-up. They need to be driven by a sine wave to produce an output amplitude and phase directly proportional to the position of the core with respect to the pick-up coils. A phase sensitive detector is required to demodulate the output signal. The main advantages of LVDTs are;

No wear problems as with potentiometers
Infinite resolution, high accuracy and linearity
No friction introduced into the measured system
Available in ranges from ±1mm to ±50mm

Note

RS LVDT's datasheet Stock No. 232-4049 is available on request.
