KM01.1105.11, Schurter C14 Snap-In IEC Connector Male, 10A, 250 V, Разъем

C14 male panel clip-on sockets, 4793 Series

Male snapfit panel sockets with switch and fuse holder Ø 5 x 20 mm.
Double-pole switch.
Class 1 protection.
The 5 x 20-mm fuse holder drawers must be ordered separately.

Options include:
173-7803 – KM01.1205.11
173-7804 – KM01.1105.11 (box of 50)
498-2647 – KM01.1105.11
498-2653 – 4301.1405 Fuse Block

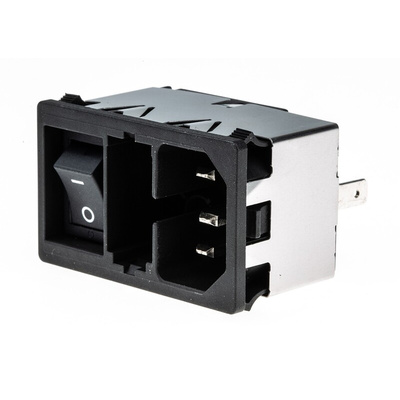

Schurter Male Socket Connector (498-2647)

The Schurter IEC fused inlet is a straight male C14 connector and snap-in mount plug device. It has switched inlets with a double pole fuse holders and double-pole switch. It has a power supply voltage rating of 250V ac and current rating of 10A. These connectors are ideal for applications with high transient loads and suitable for use in equipment according to IEC/UL 62368-1.

Features and Benefits:

Ultra-compact design
Panel mount version from the front side
EMC-Shield design and without a line filter
2 pole switch with double pole fuse
Quick connect terminals 4.8mm x 0.8mm
All the single elements are already wired
Safety "Extra-Safe" fuse drawer
Operating temperature ranging between -25°C and +70°C
IP40 rating
Flammability rating UL94V-0
3 functions
Switch On-Off features
Housing material Black Thermoplastic

Datasheet - KM01.1205.11
