440P-MTAS11B, Allen Bradley Guardmaster 440P Series Telescope Interlock Switch, NO/NC, IP66, Metal Housing, Концевой выключатель

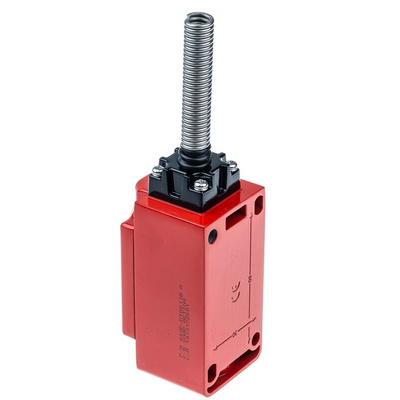

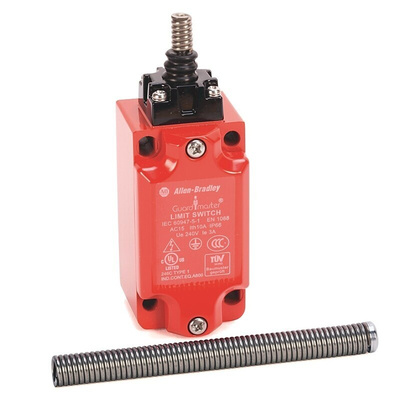

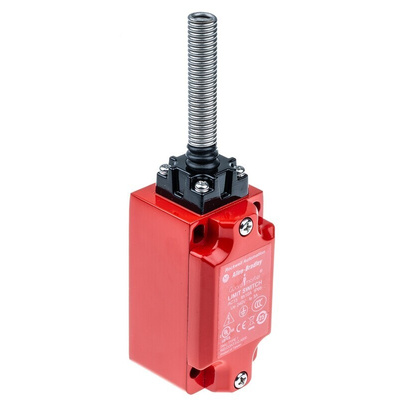

Allen Bradley Guardmaster Telescopic Stop Switch, NO/NC, 40mm Width - 440P-MTAS11B

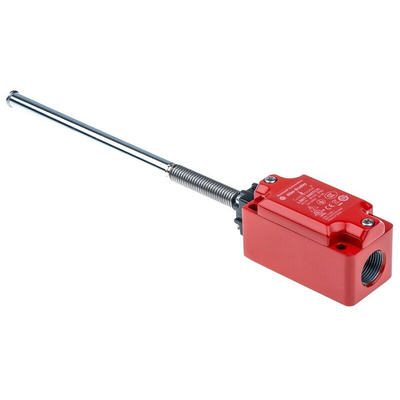

Accurately control machinery in your workplace with this interlock limit switch from Rockwell Automation's Allen Bradley range. The slow-action nature of this stop switch provides precise positioning and synchronisation of make and break points. It's operated by the sliding action of the guard or another moving object, which ultimately deflects the lever. For easy mounting, you can rotate the head in 90° increments before installation. The metal telescopic arm has a length of 303mm which extends to 900mm, making this a versatile choice.

Features & Benefits

• Minimum mechanical life of 10,000,000 cycles for durability
• Screw terminals for simple installation and a reliable join
• Contact rating of 1.2A/600V, 1.4A/500V, 3A/240V and 6A/120V, so the device effectively handles current influxes

Standards and Certifications

• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• TUV (Technischer Überwachungsverein)
• CCC (Chinese standard)

What does NO/NC mean?

NO (normally open) means the switch remains in an open position until an action forces it to close. NC (normally closed) means the switch remains in a closed position until an action forces it to open. NO/NC means the switch has one pair of normally open switches and one pair of normally open switches, so it offers both actions.

Datasheet

Machine Guarding and Safety Range Overview

Installation Sheet - 440P-MTAS11B
