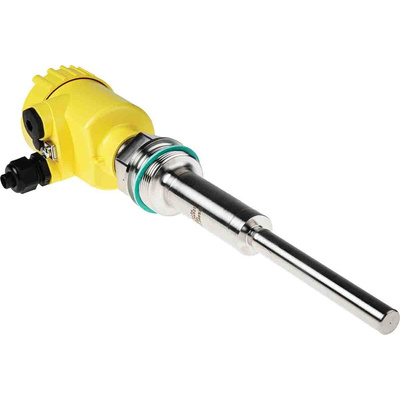

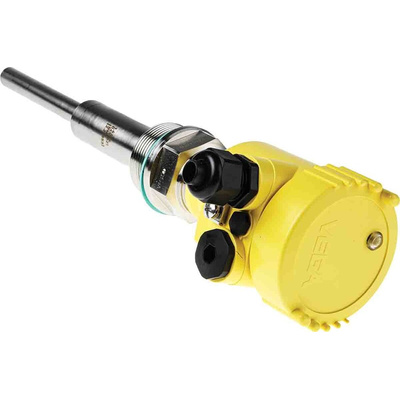

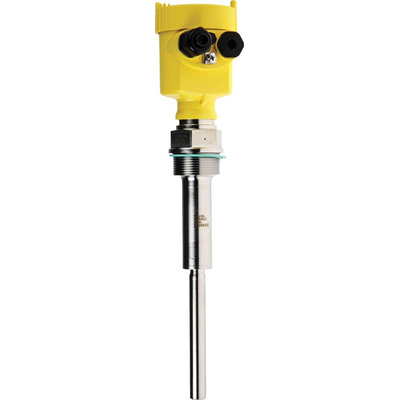

VB61.XXAGDRKMX, Vega VEGAVIB 61 Series Vibrating Rod Level Switch, Relay Output, Free, Plastic Body

Vega Vibrating Level Switch

The Vega vibrating rod level switch has a relay (DPDT), contactless electronic switch, two-wire output. It detects reliably and accurately the minimum or maximum limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean. The extended version is ideal for top mounting as high-level switching or side mounting through long nozzles. The rod itself is smooth and rounded, with no sharp edges, which avoids jamming of the bulk solid and is easy to clean. Vibrating Liquid/Solid Level Probes – Squings.
All of these probes are maintenance-free and have an external LED switch status indication

Features and Benefits

The supply voltage ranging from 20VAC to 253VAC
Process fitting/Material: Thread G1 PN16, DIN3852-A / 316L, switching point as VEGAVIB 51

Rod design helps to avoid product build-up
Green/Red LED switch indication and device monitoring
maintenance-free and does not wear out
Easy setup without adjustment
Low maintenance cost
Minimum time and cost expenditure simple setup without a medium
Reliable function through product-independent switching point
Operating temperatures ranging between -50°C and 150°C
Housing/Protection: Plastic single chamber
Power consumption ranges between 1VA and 8VA

Applications

For use with granules and powders
Level measurement and point level detection in the grain silo
Level measurement and point level detection in small storage containers

Certifications

IP66 rated
IP68 (0,2bar) rated
IP67 rating
IP68 (1bar) rating
IEC 61508

Product Guide Data Sheet
