G2E140-NS38-01, ebm-papst G2E140 Series Centrifugal Fan, 230 V ac, 370m³/h, AC Operation, 248 x 237 x 100mm

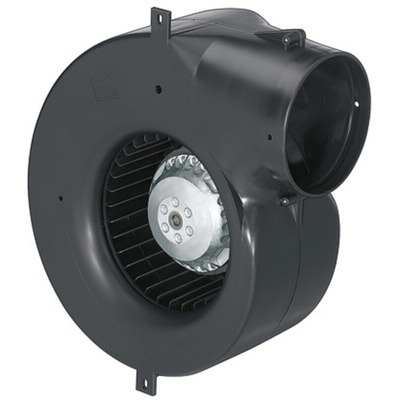

ebm-papst Centrifugal Fan

The ebm-papst single inlet centrifugal fan has an airflow of 390m³/h (for 50Hz) at a fan speed of 1800rpm and has a supply voltage rating of 230VAC. The external rotor motor is integrated within the impeller, therefore reducing installation dimensions. The scroll housing is open on both sides for added efficiency and a reduction in noise level. The robust and space-saving design makes them versatile and easy to use. It is 248mm long, 237mm wide and 100mm deep. It has featured forwarding curved blades ideal for a wide range of applications.

Features and Benefits

The speed of these centrifugal fans, when equipped with an external rotor, can be adjusted by reducing the supply voltage using a variable speed controller
The impeller is crimped straight onto the rotor
Class B insulation
The casing is made of unpainted injected aluminium
For double inlet models, the casing is made of galvanised steel
Variable speed controllers are also available
Thermal protection by thermocontact and windings

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

CE certified
CCC certified
EAC certified
IP44 rated
EN 60335-1

Note

Motor capacitor (needed for normal use) not included. please order sepeartely e.g. 1964731
