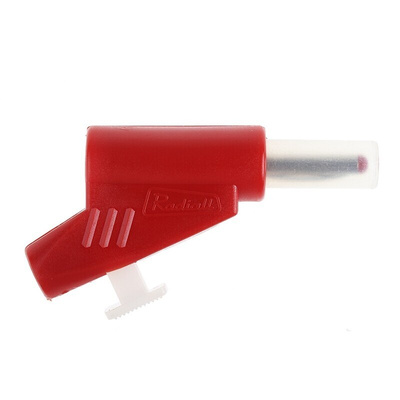

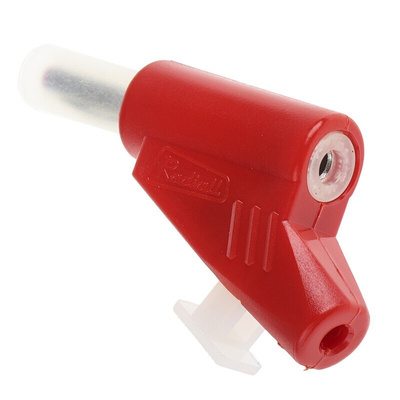

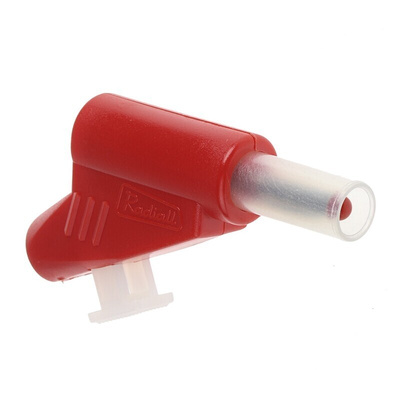

R 941 461 600, Radiall Red Male Banana Plug, 750V ac, 30A

4-mm banana plugs BDR4 series

4-mm banana plug, able to take 2 x4 mm banana plugs and with a rear aperture, accessible using a button, to connect wires of 8 to 21 mm.

Radiall Banana Plug

The Radiall red, male banana plug is compatible with all 4mm sockets. This plug is a high-quality, reliable connector used for the high-density test, measurement applications and excellent electrical connections. It has a voltage rating of 750VAC and a current rating of 30A.

Features and Benefits

Very low contact resistance
Robust contact point pressure when connected
High durability for high number of mating cycles
Nickel or tin contact plating
Brass contact material
Length is 61mm
Thermoplastic insulation

Applications

Research institutes and laboratories
Education
Instrumentations
Low voltage

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

BDR-SR / BDR-PR banana plugs
