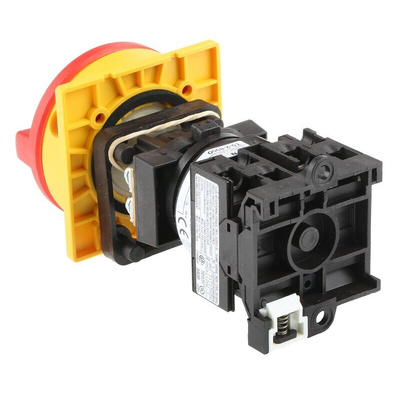

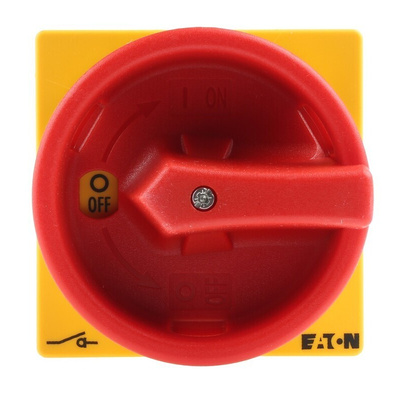

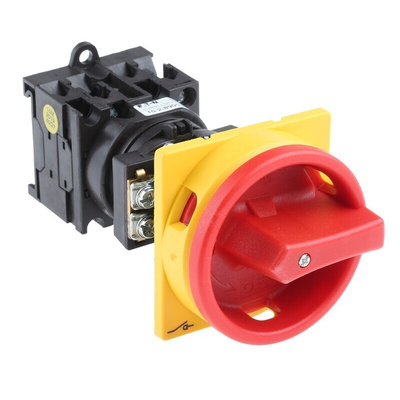

207405 T0-2-8900/V/SVB, Eaton 3P+N Pole Isolator Switch - 20A Maximum Current, 6.5kW Power Rating, IP65

Eaton Isolator Switch, Single Throw Configuration, 415V AC Voltage Rating - 207405 T0-2-8900/V/SVB

Restrict power flow to defined parts of your electrical setup with this isolator switch from Eaton. It has three poles, so you can link multiple circuits simultaneously or use it with three-phase equipment. Simply turn the red rotary handle to cycle between the ON and OFF states. To keep up with demanding tasks, the unit handles 1,200 operations per hour. It's easy to fit this unit into tight areas, thanks to space-efficient dimensions of 65 (L) x 65 (W) x 96mm (D). Screw terminals make it a cinch to install with just a screwdriver. You'll find units like this everywhere from hospitals to factory floors.

Features & Benefits

• 90° switching angle minimises the risk of accidental actuation
• Red and yellow colour scheme catches the eye easily for fast identification
• Accepts a padlock to boost security
• Performs reliably in temperatures between -25°C and +50°C
• 415V AC voltage rating indicates it's suitable for use with UK mains electricity

Does this unit have an IP rating?

Yes. This isolator switch has an IP65 rating, which means it's completely dust-tight and withstands water jets from all directions.

Note

Eaton formerly known as Moeller

T0-2-8900/V/SVB Datasheet
