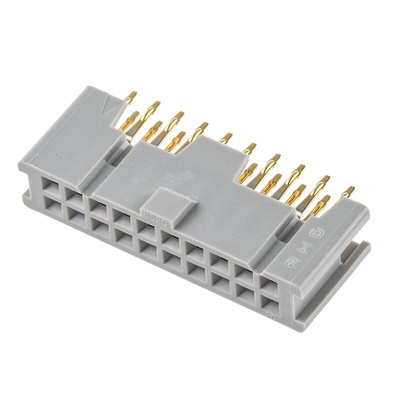

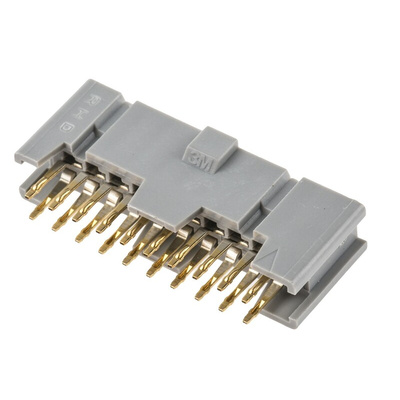

8520-4500PL, 3M 8500 Series Straight Through Hole Mount PCB Socket, 20-Contact, 2-Row, 2.54mm Pitch, Solder Termination

3M 8500 Series 2.54 x 2.54mm Polarized PCB Sockets

From 3M, the8500 series 2.54 x 2.54mm polarized vertical PCB mount sockets feature centre bump polarization and PCB retention. These 8500 series 2.54mm pitch PCB socket connectors mate with low profile shrouded headers and are used in boardstacking applications such as mother/daughter board.

A keying plug is available, see stock number 828-0437

Features and Benefits

• Centerbump polarization
• Mates with low profile shrouded headers
• UL 94V-0 rated polyester body
• Board retention feature

Applications

Board mount connectors are a low-profile solution to PCB connectors, and are designed connect near the edge of the board. They have advantages in creating reliable device connection with practical space-saving. They are used in the manufacturing of many electronic devices.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M Straight PCB Socket, 20 Way, 2 Rows - 8500 Series - 8520-4500PL

This PCB (printed circuit board) socket from 3M creates a secure link between two PCBs. The double-sided mating design is a space-efficient way to make connections without the need for a cable assembly. There are square terminals on the socket's female connection side and 20 contact pins on its male side. Its connectors are arranged in two rows, allowing for a compact board design. This unit complies with the Restriction of Hazardous Substances (RoHS) directive, so you can be sure it contains no more than trace amounts of any harmful substances.

• Through-hole mounting type allows for stable and deep pin connections • Flame-retardant UL 94V-0 (Underwriters Laboratories) rated polyester body stops burning after ten seconds• Copper contact material prevents circuit blowouts thanks to high heat resistance• Straight body orientation creates a clear connection that's easy for operators to check

Applications

• Vehicle hazard lights• Memory interface cards• Radio transmitters• Exit lights

How do I secure this socket to my printed circuit board?

This PCB socket is secured using soldering. The soldering alloy fuses the contacts to the PCB to keep them fixed tightly together and prevent dislodging.

Datasheet
