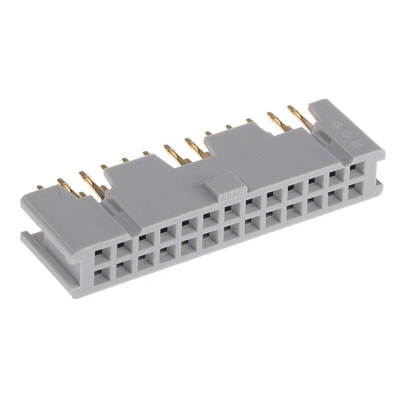

8526-4500PL, 3M 8500 Series Straight Through Hole Mount PCB Socket, 26-Contact, 2-Row, 2.54mm Pitch, Solder Termination

3M 8500 Series 2.54 x 2.54mm Polarized PCB Sockets

From 3M, the8500 series 2.54 x 2.54mm polarized vertical PCB mount sockets feature centre bump polarization and PCB retention. These 8500 series 2.54mm pitch PCB socket connectors mate with low profile shrouded headers and are used in boardstacking applications such as mother/daughter board.

A keying plug is available, see stock number 828-0437

Features and Benefits

• Centerbump polarization
• Mates with low profile shrouded headers
• UL 94V-0 rated polyester body
• Board retention feature

Applications

Board mount connectors are a low-profile solution to PCB connectors, and are designed connect near the edge of the board. They have advantages in creating reliable device connection with practical space-saving. They are used in the manufacturing of many electronic devices.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M PCB Socket, Copper Contact Material, 12A Current Rating - 8500 Series - 8526-4500PL

For a handy board-stacking solution, look to this PCB socket from 3M. It's a socket strip that attaches to a board to let you easily plug and unplug components. The contacts are made of copper alloy, meaning they're highly conductive and deliver reliably strong signals. The unit is simple to install thanks to its through-hole mounting style. The 2.54mm pitch connectors are accurately sized for mating with low-profile shrouded headers.

• Solder termination method for reliable connections
• 26 contacts over two rows to save space on a PCB
• Centerbump polarisation makes sure you get the correct alignment

Applications

• Consumer electronics manufacture
• Automation control
• Electrical engineering

Can I use this PCB socket in extreme conditions?

Yes, it has a broad operating temperature range between -55°C and +105°C, so it's suitable for use in harsh environments.
