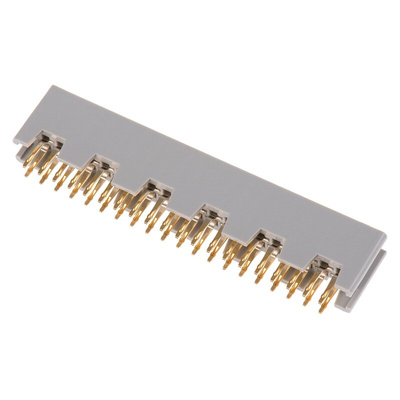

8540-4500PL, 3M 8500 Series Straight Through Hole Mount PCB Socket, 40-Contact, 2-Row, 2.54mm Pitch, Solder Termination

3M 8500 Series 2.54 x 2.54mm Polarized PCB Sockets

From 3M, the8500 series 2.54 x 2.54mm polarized vertical PCB mount sockets feature centre bump polarization and PCB retention. These 8500 series 2.54mm pitch PCB socket connectors mate with low profile shrouded headers and are used in boardstacking applications such as mother/daughter board.

A keying plug is available, see stock number 828-0437

Features and Benefits

• Centerbump polarization
• Mates with low profile shrouded headers
• UL 94V-0 rated polyester body
• Board retention feature

Applications

Board mount connectors are a low-profile solution to PCB connectors, and are designed connect near the edge of the board. They have advantages in creating reliable device connection with practical space-saving. They are used in the manufacturing of many electronic devices.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M PCB Socket, 40 Way, Straight Body - 8500 Series - 8540-4500PL

Need mounting space for multiple electrical contacts? This PCB socket from 3M does the trick. With space for up to 40 connections, it helps you power through wiring jobs in a snap. Rest assured your conductors are safe as houses thanks to the socket's secure and durable joins to your PCB. Centre bump polarisation takes the guesswork out of mating, as you can only match the socket with a compatible header.

Features & Benefits

• Part number on each piece allows for quick and convenient identification
• PBT insulation material protects you against electric shocks
• Flame retardant, so it won't catch alight in the event of a fire

Applications

• Industrial control centres
• Robotics systems
• Energy and utilities industry

What's the current rating of this PCB header?

This header has a current rating of 12A for compatibility with demanding circuits.
