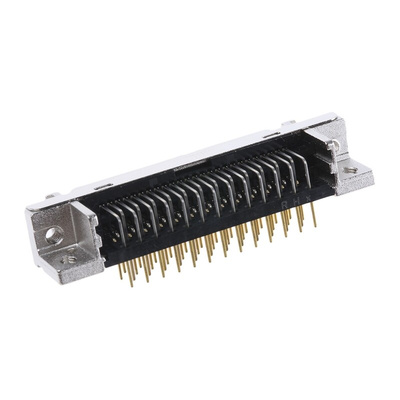

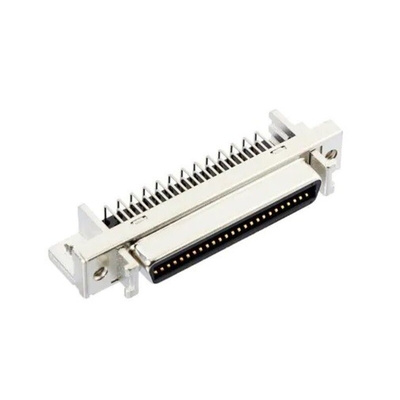

10250-5212PL, 3M, 102 Female 50 Pin Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder, Разъем

90° Panel Mount PCB I/O Receptacles

These 3M 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles have a 0.050 inch pitch. The design of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles includes an interface latch for improved stability. For the main body/insulation material and mounting variations of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles see below.

Features and Benefits

• Mates with cable mounting solder plugs, series stock no. 515-7460
• Excellent EMI/ESD protection
• PCB mounting right angle sockets with retention by Screw or Ground Locks
• Panel retention by Metric or UNC threads

Available in this range:

102xx-52xx: Zinc Alloy body
102xx-55xx: PCT Insulator with Steel Nickel plated Shroud
102xx-520x: M2.6 Panel and Screw lock
102xx-521x: M2.5 Panel and Screw lock
102xx-55Bx: M2.5 Panel with Ground lock type 1 (3.8 mm)
102xx-55Fx: M2.6 Panel with Ground lock type 3 (2.3 mm)
102xx-55Gx: M2.5 Panel with Ground lock type 3 (2.3 mm)
102xx-55Hx: #4-40 Panel with Ground lock type 3 (2.3 mm)
102xx-xxx2: 3.9 mm long solder Tail
102xx-xxx3: 2.8 mm long solder Tail

What is a D-Sub Connector used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

The thickness of the wiping area Gold plating is determined by the Manufacturers Part Number, those ending in PL have 0.2 μm , those ending in PE have 0.5 μm and those ending in PC have 0.76 μm.

3M SCSI Connector, 150V AC/200V DC Voltage Rating, 500mA Current Rating - 102 Series - 10250-5212PL

Connect devices to your computer using this SCSI connector from 3M. Its 50 contacts are made of copper alloy with gold-over-nickel plating, making them highly conductive and resistant to corrosion. This means you can be sure of a reliable connection. Thanks to its right-angle orientation, this connector is easy to fit into tight or awkward areas.

• Voltage rating of 150V AC and 200V DC for use in low-voltage setups
• Wide operating temperature range of -55°C to +85°C for use in demanding environments
• Screw lock mechanism to achieve a simple and secure attachment to your panel

Applications

• Computing systems
• Removable storage drives

What termination method does this connector use?

This connector uses the solder termination method for a secure PCB attachment that supports reliable signal transmission.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

102xx-5xxxP Dimensional Drawing

Datasheet
