701060/822-02, Jumo eTRON Panel Mount Thermostat, 2 Output 2 Relay, 230 V ac Supply Voltage, Термостат

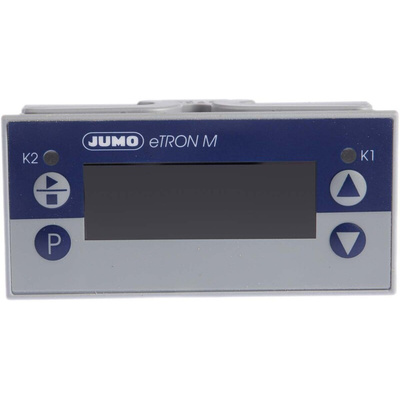

Jumo Electronic Microstat

The Jumo eTRON series electronic Microstat has a supply voltage rating of 230VAC. This controller has a width of 36mm and a height of 76mm. It has Fe-Con J wire input circuit. This factory-set version is easily configurable for measurement within the supported range. It has 2 relay contacts of 5A.

Features and Benefits

Compact, electronic Microstat for simple temperature control (for heating or cooling)
3-digit backlit LC display
13mm digit height and special characters for °C, °F, hours, minutes, seconds and active defrosting and/or heating phase
Simple operation via 4 keys
Output 1 changer or 2 N/O contacts
Adjustable switching hysteresis
Integrated defrost function
Limit value monitoring
Elapsed time counter
Code-protected parameter level
Simple assembly, panel-mounted

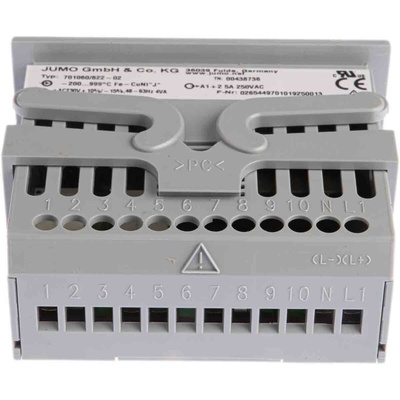

Electric connection via screw terminals
Protection tube 6mm width and 50mm height
Connection lead 2.5m
Setup program (for Windows 98/ME/NT4.0/2000/XP) includes PC interface

Certifications

IP20 rated
UL94 V0 approved
EN61326
EN61010
Part 1
Overvoltage category III
Pollution degree 2

Datasheet - 701060/8
