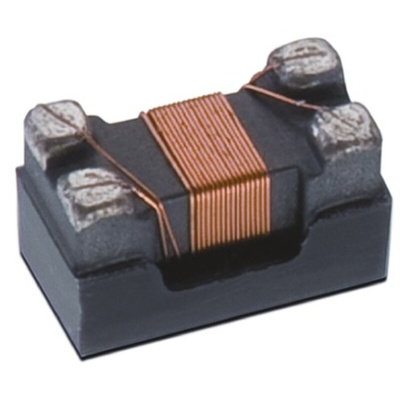

744232222, Wurth Elektronik Wurth, WE-CNSW SMD, 1206 (3216M) SMD Common Mode Line Filter with a Ferrite Core, ±25% Dual 200mA Idc, Индуктор

Wurth WE-CNSW SMD Series Common Mode Chokes

Wurth WE-CNSW common mode filters offer high common mode suppression at high frequency and the winding symmetry provides small influence on high speed signals. Offered with a range of rated currents and impedance values, suitable applications for these common mode filters include USB 2.0, Firewire, LVDS, LAN, high speed data lines and common mode noise sources.

Reflow soldering recommended
Common mode EMI noise suppressed at high frequencies

Current compensated data line filter
High common mode noise suppression at high frequencies
Small influence on high speed signals through winding symmetry
Climatic category 40/105/21 (Size 0603)
Climatic category 40/125/21 (Size 0805/1206/1812)
Flammability corresponding to UL 94 V-0
USB 2.0
IEEE 1394 (Firewire)
LVDS
High Speed Data Lines
LAN

Wurth SMD Common Mode Chokes

Datasheet
