LG5925.48/61 AC/DC24V, Dold Safemaster LG5925 Output Module, 24 V ac/dc, Модуль

LG 5925 - Emergency stop module, LG 5929 - Expansion module

Applications

Emergency stop and expansion modules for
- Machine emergency stop switching
- Monitoring sliding grill guards

General data

Safety category 4 in accordance with EN954-1
Operating status indicator
22.5 mm overall width

Emergency stop module LG 5925.48

1 or 2-channel configuration
Line termination recognition on the ON button
with or without crossover recognition

Expansion module LG 5929.60

Use only with a higher-level emergency stop module
Redundant and force guided contacts
1-channel configuration

Standards

EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1, IEC / EN 60204-01,
EN 954-1

Approvals

CE

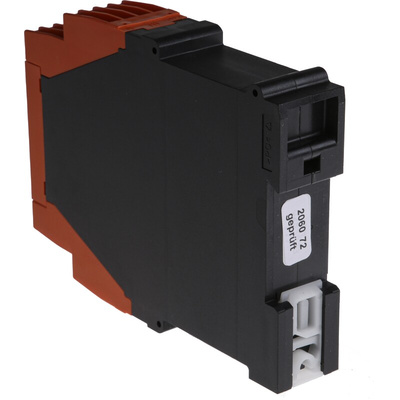

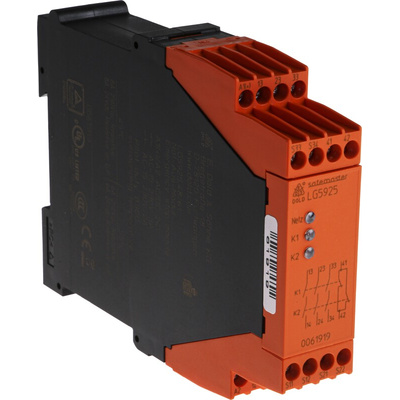

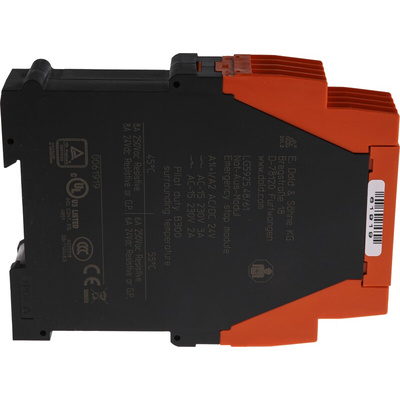

Dold Emergency Stop Module

The Dold LG5925 series emergency stop module has 2 channels 3NO/1NC normal state configuration. This extension unit has a supply voltage of 24VDC/AC.

Features and Benefits

1 semiconductor output
Line fault detection on on-button
Manual restart or automatic restart, switch S2
With or without cross fault monitoring in the E-stop loop, switch S1
Cross fault monitoring in the E-stop loop
LED indicator for state of operation
LED indicator for channel 1 and 2
Removable terminal strips
Wire connection also 2mm x 1.5mm2 stranded ferruled, or 2mm x 2.5mm2
Fixed screw terminals connection

Applications

Emergency stop circuits on machines
Monitoring of safety gates

Certifications

CE certified
TUV certified
cULus listed
CCC certified
IEC/EN 62061
IEC/EN 61508 category 4
EN 954-1

Emergency Stop Relay Data Sheet
