Schurter 4A, 250 V ac Male Snap-In Filtered IEC Connector 2 Pole KMF1.1141.11 2 Fuse, Фильтр

Schurter Fuse Inlet Filter

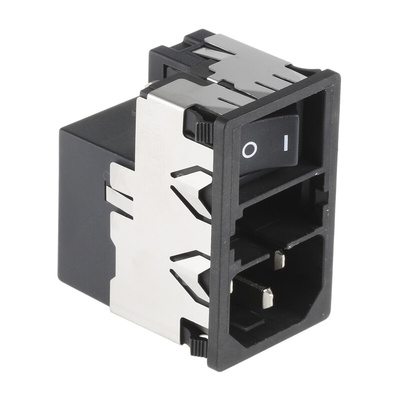

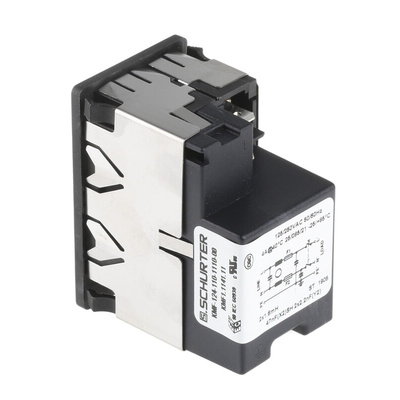

The Schurter KMF series IEC inlet filter is a male type, dual fuse, ultra-compact, snap-in mount power entry module with C14 connector. It has a supply voltage rating of 250VAC with a high-performance current rating of 4A. It acts as a line filter (in the standard and medical version), class I or II inlet protection. It has a fuse holder for fuse-links of 5mm x 20 mm and a 2-pole line switch. The operating frequency ranging between 50Hz and 60Hz.

Features and Benefits

All the single elements are already wired
One rocker switch
For added safety "Extra-Safe" fuse drawers are available
Innovative EMC shielding with flexible steel segments for excellent contact
Quick connect terminals of 4.8mm x 0.8mm
Operating temperature ranging between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
CCC

Datasheet_KMF Series
