KMF1.1161.11 Schurter Fuse Inlet Filter

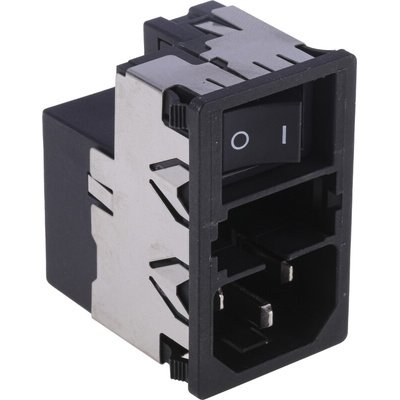

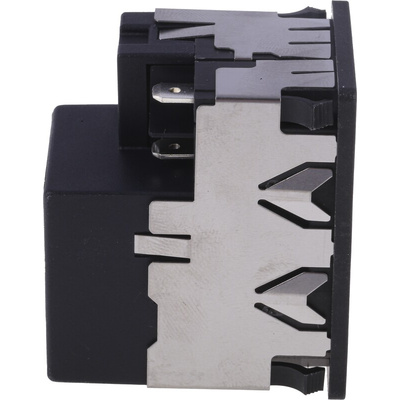

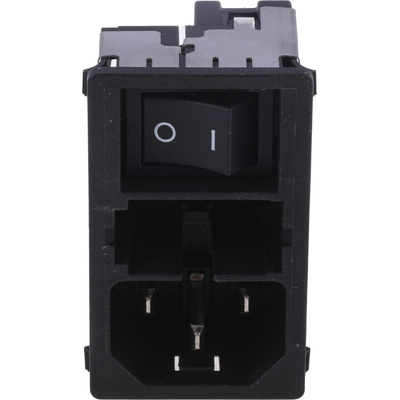

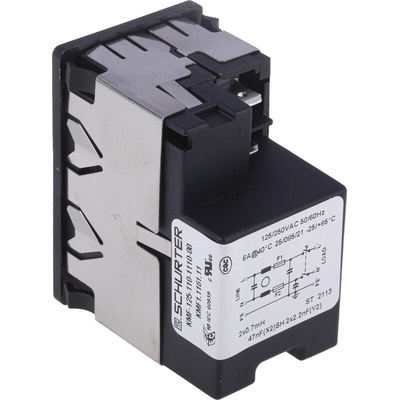

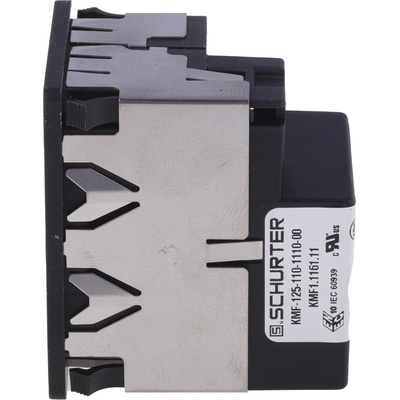

The Schurter KMF series IEC inlet filter is a male type, dual fuse, ultra-compact, snap-in mount power entry module with C14 connector. It has a supply voltage rating of 250V ac with a high-performance current rating of 6A. It acts as a line filter (in the standard and medical version), class I or II inlet protection. It has a fuse holder for fuse-links of 5mm x 20 mm and a 2-pole line switch. The operating frequency ranges between 50Hz and 60Hz.

Features and Benefits

Compact design
Snap in mounting for ease and flexibility
All the single elements are already wired
One rocker switch
Solder termination method
For added safety "Extra-Safe" fuse drawers are available
Innovative EMC shielding with flexible steel segments for excellent contact
Quick connect terminals of 4.8mm x 0.8mm
Operating temperature ranging between -25°C and +85°C

Applications

Suitable for appliances with protection class I or II according to IEC 61140
Electrical and electronic equipment
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
CCC
