Schurter 10A, 250 V ac Male Snap-In Filtered IEC Connector 2 Pole KMF1.1191.11, Solder 2 Fuse, Фильтр

KMF1.1191.11 Schurter Fuse Inlet C14 with Filter

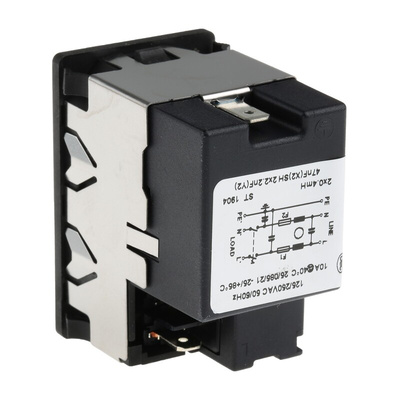

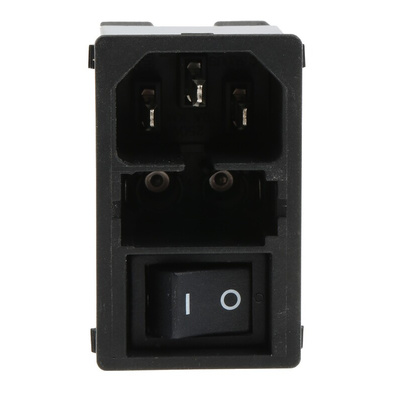

The Schurter KMF series IEC inlet filter is a male type, dual fuse, ultra-compact, snap-in mount power entry module with C14 connector. It has a supply voltage rating of 250V ac with a high-performance current rating of 10A. It acts as a line filter (in the standard and medical version), class I or II inlet protection. It has a fuse holder for fuse-links of 5mm x 20 mm and a 2-pole line switch. The operating frequency ranging between 50Hz and 60Hz.

Features and Benefits

Compact design
Snap in mounting for ease and flexibility
All the single elements are already wired
One rocker switch
Solder termination method
For added safety "Extra-Safe" fuse drawers are available
Innovative EMC shielding with flexible steel segments for excellent contact
Quick connect terminals of 4.8mm x 0.8mm
Operating temperature ranging between -25°C and +85°C
IP40 rating
Housing material black thermoplastic UL 94V-0

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
CCC

Inlet C14 with Filter Datasheet
