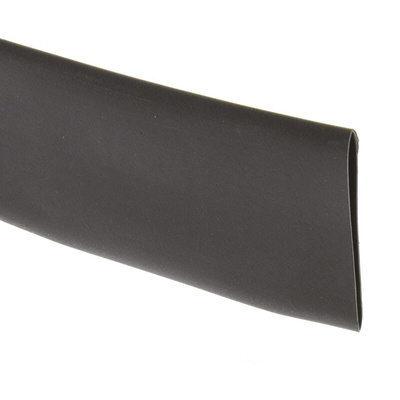

308-32400 HIS-3-24/8-PO-X-BK, HellermannTyton Heat Shrink Tubing, Black 25.4mm Sleeve Dia. x 3m Length 3:1 Ratio, HIS-3 Series

Heat Shrink Tubing HIS-3

Heat shrink tubing supplied in useful dispenser boxes for easy storage and use. The tubing has an ideal shrink ratio of 3:1, this allows them to fit almost any heat shrink task. Ideal for electrical insulation and equipped with a high level of protection against mechanical abrasion. HIS-3 is suitable to be used in the Solar, Wind, Electronics, Shipbuilding and Defence industries.

Features and Benefits

• Thin wall and flexible heat shrink tubing
• Heat shrink ratio of 3:1 is the optimal ratio providing a wide range of coverage of applications

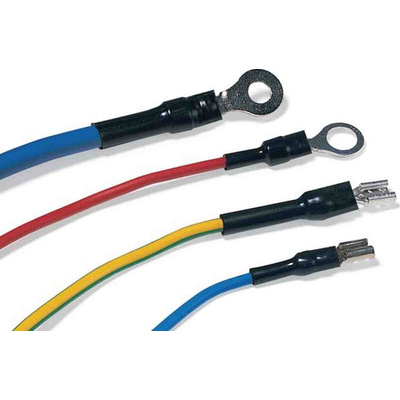

• Reliable electrical insulation

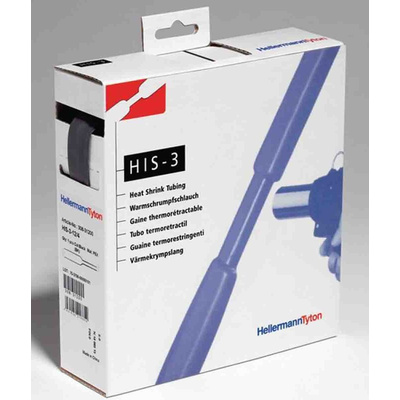

• Packaged in dispenser boxes
• Dispenser boxes allow the tubing to stay dust free even after opening a box
• Available in various colours and sizes
• Halogen free
• Flame retardant (UL94 V2, FMVSS 302 rating)
• High level mechanical protection

Why should I use HellermannTyton HIS-3 Heat-Shrink Tubing?
HellermannTyton Heat Shrink tubing is optimally matched for providing protection against mechanical, environmental, chemical or electrical effects.

What does a heat shrink ratio of 3:1 mean?
A ratio of 3:1 means when the tube is heated it shrinks to a third of its original diameter.

How can I shrink the tubing?
A heat gun or a heat shrink oven are ideal ways to shrink your tubing. Before heating always check to ensure you know the correct heating temperature of your tubing.

Remember to ensure all health and safety precautions have been taken prior to using a heating devise.

HellermannTyton Heat Shrink Tubing, 3m (L) x 24mm (D), Halogen-Free Material, Black Colour - HIS-3 Series - 308-32400 HIS-3-24/8-PO-X-BK

Want a quick and easy way to double-up your cable protection? Use this heat shrink tubing from HellermannTyton. It's made from durable cross-linked polyolefin, which stands up to abrasion and chemicals to safeguard wires in harsh environments. A shrinking ratio of 3:1 means this unit seals tightly around wires as narrow as 8mm. Thanks to a high dielectric strength of 20kV, it also protects users from the risk of electric shocks.

Features & Benefits

• Holds its shape in temperatures between -55°C and +135°C to suit tough environments
• Length shrinks by just 5% to maximise coverage
• Handy dispenser box lets you cut what you need

Applications

• Telecommunications networks
• Hospitals
• Consumer electronics

What happens if my cable is larger than 8mm?

If your cable has a diameter up to 24mm, the tubing will stop shrinking at the correct width to provide a snug seal.
