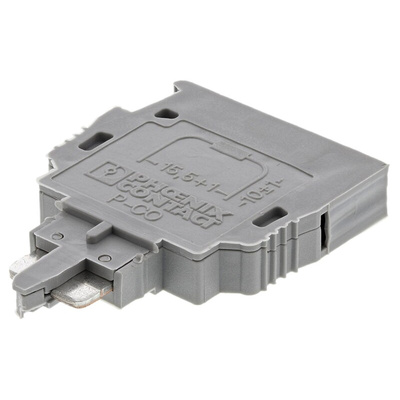

3036796, Phoenix Contact P-CO Series Grey Component Terminal Block

Phoenix Contact Component Terminal Block, Plug-In Connection, 6A Current Rating - P-CO - 3036796

Slotting an external device into your electrical system is a breeze with this component terminal block from Phoenix Contact. It features spring-cage connectors that let you quickly secure wiring without the need for tools. You can open or close the spring cage with just your favourite slotted screwdriver.
The unit accommodates wire diameters from 0.5 to 0.8mm (22 to 20AWG) making it a versatile solution that's widely compatible. With a compact pitch size of 5.2mm, it's handy for use with small conductors in your wiring.
Mounting this component is a cinch thanks to its simple pluggable connection. It's tested for railway applications, making it suitable for your transport systems. Robust PA insulation delivers protection from electric shocks, so you can rest assured you're in safe hands when touching it.

Features & Benefits

• Integrated coding recess offers protection against reverse polarity
• Performs reliably in harsh environments, thanks to an operating temperature range of -60°C to +105°C
• UL 94-V0 flammability rating indicates burning stops in 10 seconds
• Light weight of 3.6g for minimal strain on the terminal block

Datasheet 3036796

3036796 Application Note

Line Drawing - 3036796
