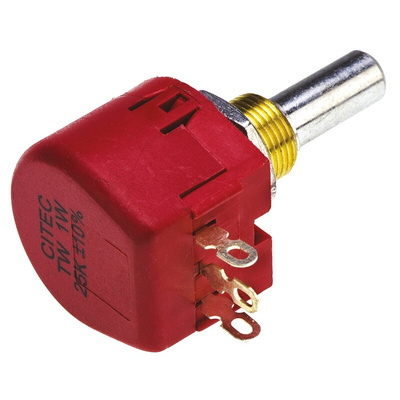

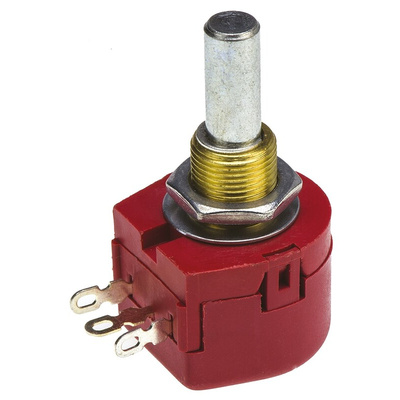

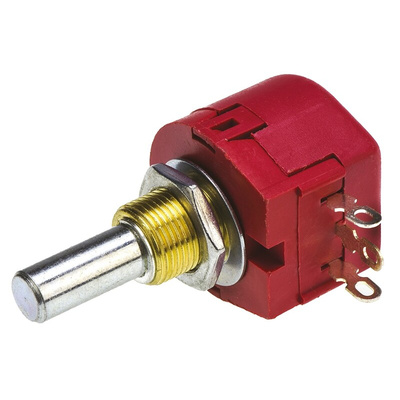

TE Connectivity 25kΩ Rotary Potentiometer 1-Gang Panel Mount, TW1253KA, Потенциометр

23mm TW Series Potentiometers

The 23mm high power wire-wound potentiometers from TE where designed to be used in a high power control environment. They are brilliant build quality with a stainless steel shaft and a rugged hard plastic casing. The potentiometers in this series are all standard with ±10% tolerance. They also have a life cycle of 10,000 operations. The 23mm series are panel mount for ease of use.

The series of 23mm TW are all rotary potentiometers. This means the shaft is housed by a knob. Turning the shaft will operate the wiper and adjust the resistance.

Features and Benefits –

•Built with quality in mind so you can use these potentiometers in a rugged environment.
•±10% tolerance
•Excellent linearity
•Sealed body provides additional protection
•10,000 operations for a long life span
•Solder eyelet termination
•Supplied with a metal lock and washer

Compatible Potentiometer Knobs –

•259-6935
•259-6957
•107-3138
