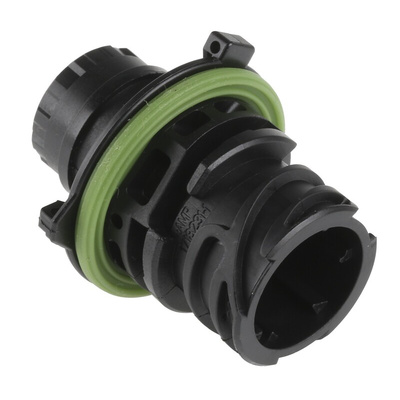

1718230-1, TE Connectivity Male Connector Housing, 11.4mm Pitch, 7 Way, Корпус разъема

Cable Plugs and Sockets

TE Connectivity's range of AMP DIN 72585 round connectors are a 7-position connector housing. These connectors boast vibration protection, resistance to physical shock, wide operating temperatures and a single wire sealing system. Made from a strong glass filled PBT these 7-way connecters make great use for conduit attachments. On the shell housing is a coloured sealant ring to provide an IP67 rating. The AMP DIN 72585 7-position connectors boast amazing reliability and strength.

Features and benefits:

•Rugged and highly reliable design
•IP67 rating to protect against the harshest of conditions
•Housed in a strong glass filled PBT
•Operating temperatures of -40°C to +120°C

Applications:

•Off-road automotive
•Heavy duty industrial use
•Agricultural applications
•Trucks & busses

IP67 Rating:

An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.

AMP DIN 72585

Based on DIN 72585, this range of sealed connectors has been developed to meet the demand for superior performance.

Vibration proofed
Resistant to physical shock
Wide temperature range
Single wire sealing system

Technical drawing

Drawing

Datasheet - 1718230-1
