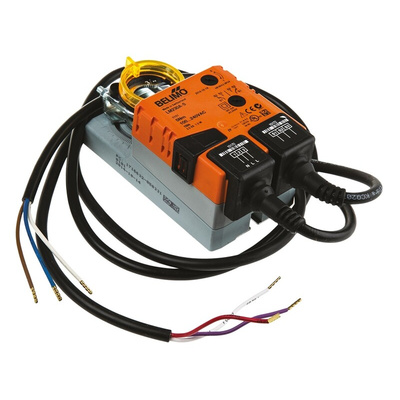

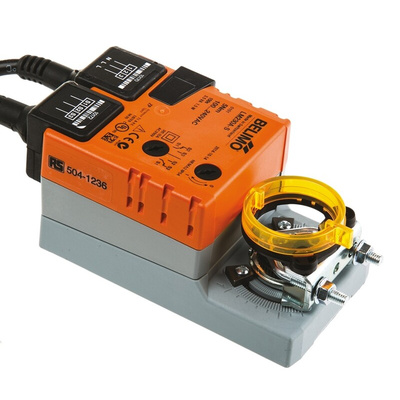

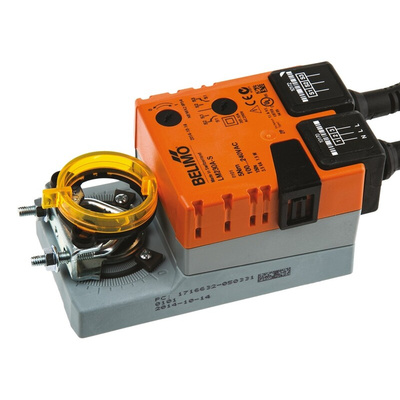

LM230A-S, Belimo Open/Close Damper Actuator, 5Nm, 240 V ac, Привод

Belimo Damper Actuator

The Belimo damper actuator has an open/close control type. This actuator has an adjustable U-clamp, which accepts round or square shafts. It is a rotary/louver actuator. It is compatible with all the leading makes of HVAC controls. The damper actuator is used for adjusting air dampers in ventilation and air-conditioning systems in buildings. This actuator operates on stall torque technology, which does not require end switches. The damper actuator has no limit switches and is overload proof. It requires a 240VAC/VDC supply voltage.
This actuator has an integrated 1xSPDT 3 (0.5)A 250Vac auxiliary switch.

Features and Benefits

Operation life is minimum 60000
Pushbutton manual override
Direction change switch
Cable length is 1m
Ambient temperature ranges between -30°C and 50°C
Rated impulse voltage is 0.8kV
Maintenance free
Power consumption is 1.5W
Maximum damper area is 1m²
Damper spindle compatibility is between 6mm and 20mm
Motor torque is 5Nm
Noise level is 35dB

Certifications

IP54 rated
CE according to 89/336/EEC
92/31/EEC
UL Enclosure Type 2
IEC/EN 60730-1
IEC/EN 60730-2-14
