NM24A-SR, Belimo Modulating Damper Actuator, 10Nm, 24 V ac/dc, Привод

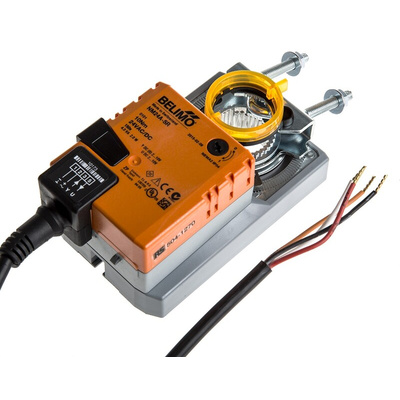

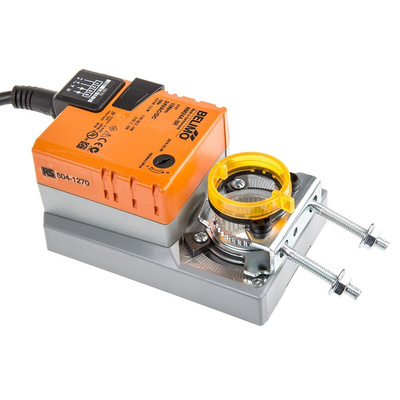

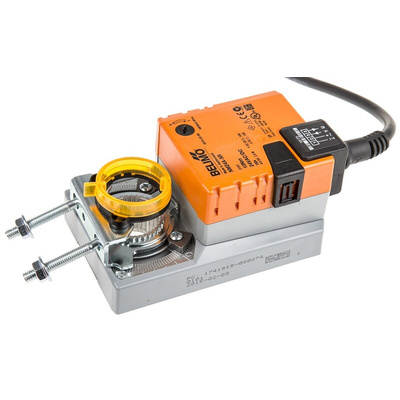

Belimo Damper Actuator

The Belimo damper actuator has a modulating control type. This actuator has an adjustable U-clamp, which accepts round or square shafts. It is a rotary/louver actuator. It is compatible with all the leading makes of HVAC controls. The damper actuator is used for adjusting air dampers in ventilation and air-conditioning systems installed in buildings. This actuator operates on stall torque technology, which does not require end switches. The damper actuator has no limit switches and is overload proof. It requires 24VAC/VDC supply voltage.

Optional auxiliary switch (stock no. 504-1545) suitable for use with LM, NM, SM, and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable.

Features and Benefits

Operation life is minimum 60000
Pushbutton manual override
Direction change switch
Cable length is 1m
Ambient temperature ranges between -30°C and 50°C
Maintenance free
Low power consumption up to 2W
Maximum damper area is 2m²
Damper spindle compatibility ranges between 8mm and 26.7mm
Motor torque is 10Nm
Noise level is 35dB

Certifications

IP54 rated
CE according to 89/336/EEC
92/31/EEC
UL Enclosure Type 2
IEC/EN 60730-1
IEC/EN 60730-2-14

NM24A-SR Data Sheet
