Belimo S2A | DPDT Actuator Switch

Belimo Actuator

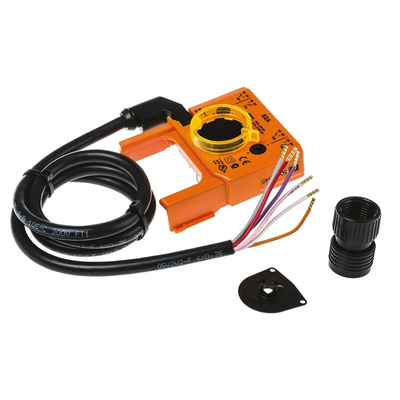

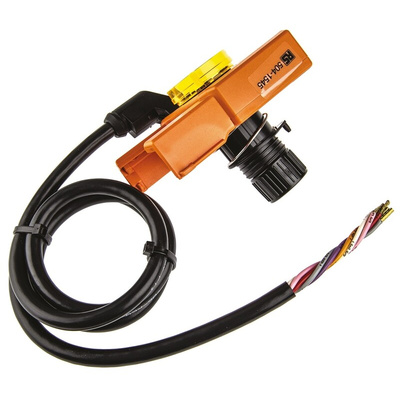

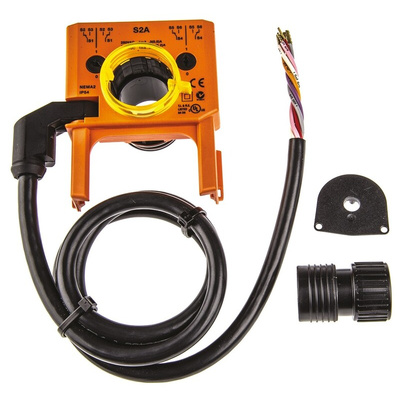

The Belimo 2 X SPDT actuator switch has an adjustable switch point. The auxiliary switch is mounted onto the direct-coupled actuator. This switch has an adjustable U-clamp, which accepts round or square shafts and is a rotary/louvre actuator. It is compatible with all leading makes of HVAC controls. This actuator operates on stall torque technology, which does not require end switches.
Features and Benefits
Ambient temperature ranges between -30°C and 50°CCable length is 1m Direction change switch Low power consumption Maintenance freeMinimum 60000 operationsPushbutton manual override Rated impulse Voltage 4kVSwitching capacity is between 1mA and 3A at 250VAC
Applications
Can be used with LM, NM, SM and GM damper actuators
Certifications
IP54 rated NEMA2UL Enclosure Type 2
