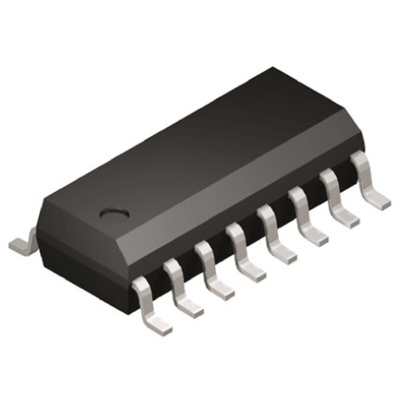

Texas Instruments DS34LV86TM/NOPB Line Receiver, 16-Pin SOIC, Линейный приемник

RS-422 Line Transceivers, Texas Instruments

The Texas Instruments DS34LV86T is a high speed quad differential CMOS receiver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS34LV86T features typical low static ICC of 9 mA which makes it ideal for battery powered and power conscious applications. The Tri-State enables, EN, allow the device to be disabled when not in use to minimize power consumption. The dual enable scheme allows for flexibility in turning receivers on and off

Low Power CMOS Design (30 mW Typical)
Interoperable With Existing 5V RS-422 Networks
Industrial Temperature Range
Meets TIA/EIA-422-B (RS-422) and ITU-T V.11 Recommendation
3.3V Operation
±7V Common Mode Range @ VID = 3V
±10V Common Mode Range @ VID = 0.2V
Receiver OPEN Input Failsafe Feature
Ensured AC Parameter:
 Maximum Receiver Skew: 4 ns
 Transition Time: 10 ns
Pin Compatible With DS34C86T
32 MHz Toggle Frequency
Greater than 6.5k ESD Tolerance (HBM)
Available in SOIC Packaging
