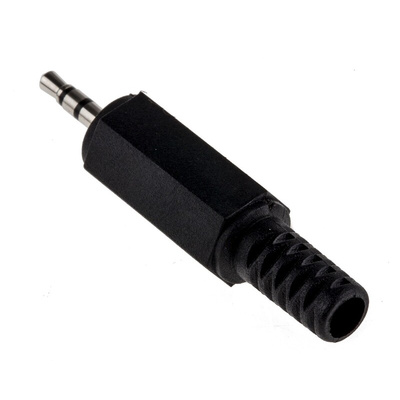

KLS 13, Lumberg Jack Connector 2.5 mm Cable Mount Stereo Plug, 3Pole 500mA

2.5 mm Male Jack Plugs

From Lumberg, this phone audio jack connector is suitable for high quality applications. With an ergonomic hexagonal housing, this cable mounted connector also has an integrated strain relief for bend protection, reducing damage to the connector caused by every day wear and tear.

With a nickel plated contact and insulating body material, the jack plug is cost effective and reliable.

Jack plugs, or phone connectors, are prevalent in domestic and commercial hi-fi applications, but also have uses in computing and commercial public address systems. Where ever a custom audio set up is required, you will likely find a need for jack connectors.

Features and Benefits

• Ergonomic Body
• Nickel Plated
• Rated current of 0.5A
• Rated voltage of 34VAC/VDC
• Temperature range from -20°C to 70°C

Lumberg Stereo Jack Plug

The Lumberg 2.5mm 3-pole male stereo jack plug has a voltage rating of 34VAC/DC and current rating of 0.5A. With an ergonomic hexagonal housing, this cable mount connector also has an integrated strain relief for bend protection, reducing damage to the connector caused by everyday wear and tear.

Features and Benefits

Connectable cable diameter is 4mm
Housing material is PE with POM insulating body
Insulation resistance is less than equal to 100Mohm
Bend protection and solder terminals
Operating temperature ranging between -20°C and 70°C

Certifications

JISC 6560 certified

Datasheet
