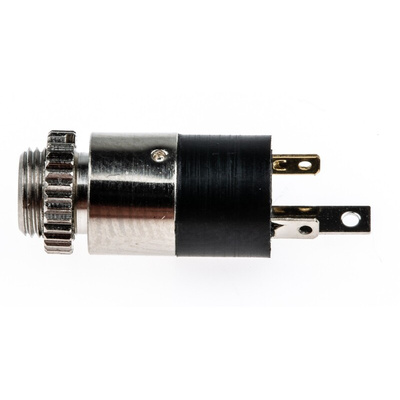

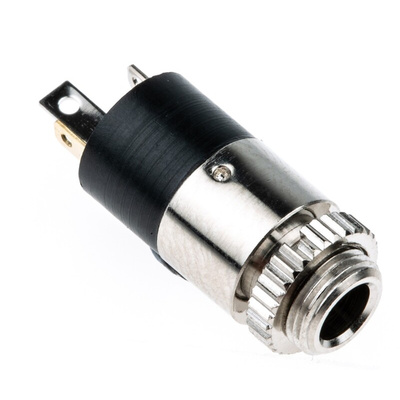

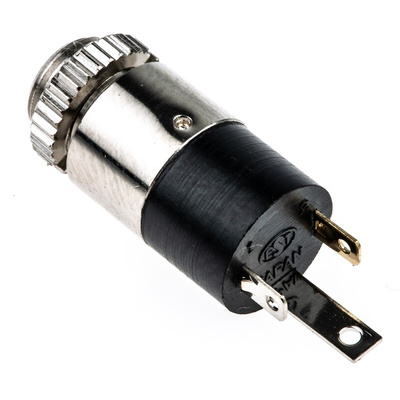

KLB 4, Lumberg Jack Connector 3.5 mm Panel Mount Stereo Socket, 3Pole 1A

Lumberg Chassis Jack Socket, Stereo

From Lumberg, this chassis mounted stereo Jack socket is designed for rear mounting. With solder eye termination and a robust nickelled housing, this phone audio connector offers a secure and durable connection. It includes a screw on nut to secure the connector neatly into a panel.

Designed for use in commercial and domestic audio applications, this jack socket can be fitted for studio use, or in consumer hi-fi and audio visual equipment. It may also be used in various telecom and communication devices, from tour bus microphones to nurse call systems.

Features and Benefits

• Nickle Plated Contact
• Vertical Socket
• Lifecycle of over 1000 mating cycles
• Insulation resistance ≥10⁸ ohm
• Test Voltage 500 V/60 s

Lumberg Chassis Stereo Jack Socket

The Lumberg 3.5mm 3-pole female chassis stereo jack socket has a voltage rating of 34VAC/DC and current rating is 1A. This is designed for rear mounting. With solder eye termination and a robust nickel housing, this phone audio connector offers a secure and durable connection. It includes a screw-on nut to secure the connector neatly into a panel.

Features and Benefits

Gold over nickel-plated contact
Body material is PBT GF
Vertical socket
Lifecycle of over 1000 mating cycles
Insulation resistance is greater than equal 10^8ohm
Test voltage is 500V/60 second
Operating temperature ranging between -20°C and 70°C

Applications

Commercial and domestic audio applications
Studios
Consumer hi-fi and audio visual equipment
Telecom and communication devices
Tour bus microphones and nurse call systems

Certifications

JISC 6560 certified
UL94 approved

Jack Connectors according to JISC 6560, 3.5mm
